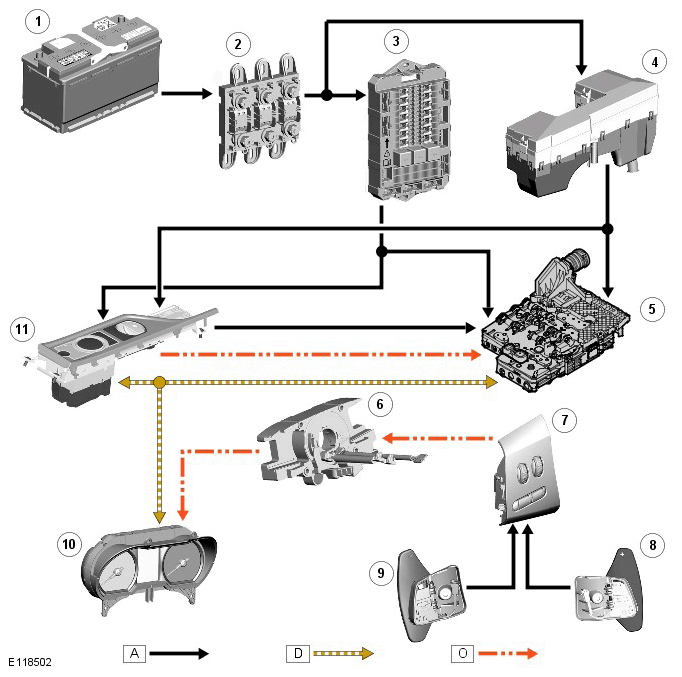

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN (controller area network) bus; O = LIN (local interconnect network) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (250 A megafuse) |
| 3 | CJB (central junction box) |
| 4 | EJB (engine junction box) |
| 5 | TCM (transmission control module) |
| 6 | Clockspring |
| 7 | Steering wheel audio switches |
| 8 | Upshift paddle switch |
| 9 | Downshift paddle switch |
| 10 | Instrument cluster |
| 11 | JaguarDrive selector |
