Battery - SPORTBRAKE (G1574151): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If a new battery is installed, the battery monitoring system (BMS) must be reset using Jaguar approved diagnostic equipment.
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Obtain and record the audio unit preset radio frequencies.

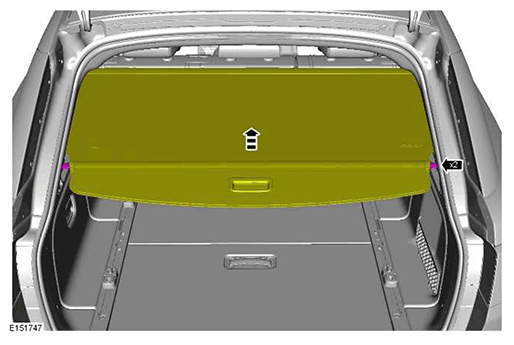

  2. G11422127

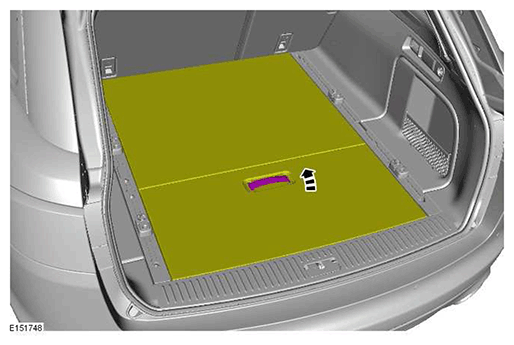

  3. G11422128

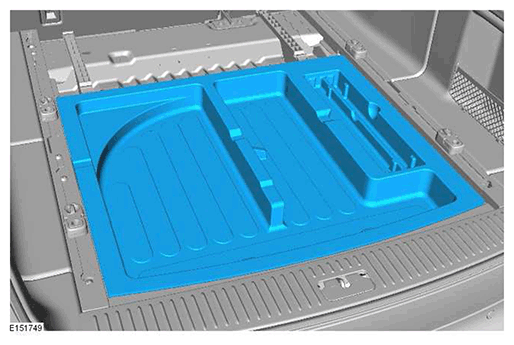

  4. G11422129

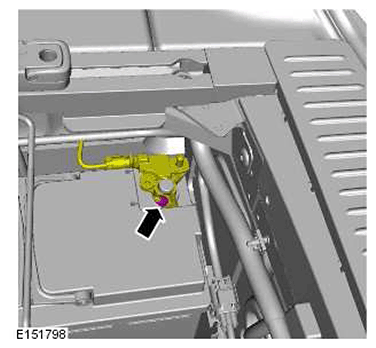

  5. G11422130

    Torque specification: 6 Nm

  6. CAUTION: Make sure that the battery negative cable does not move when detaching the negative terminal from the battery.

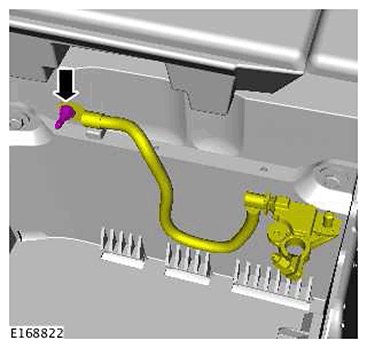

    G11422131

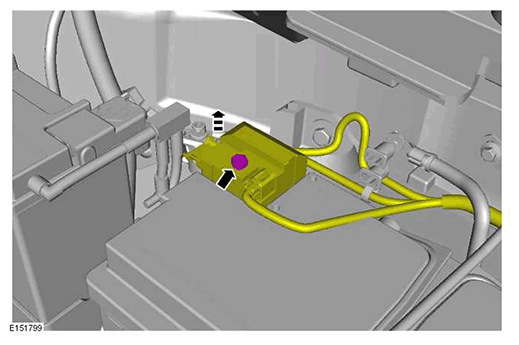

  7. G11422132

    Torque specification: 5.4 Nm

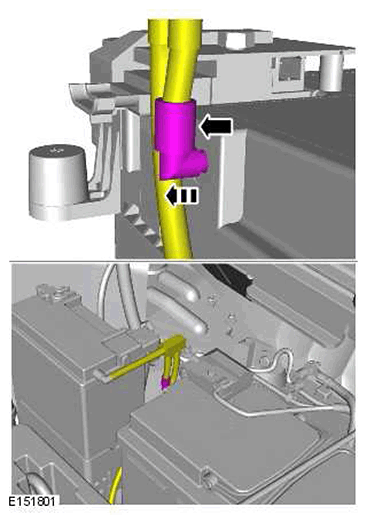

  8. G11422133

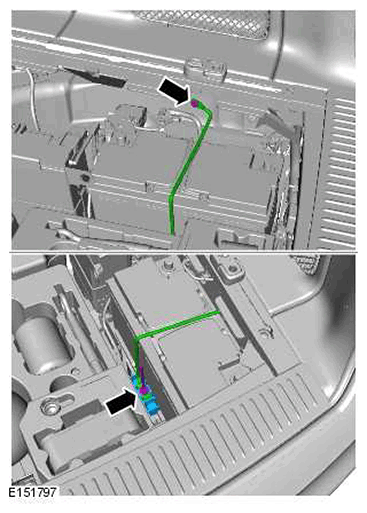

  9. G11422134

    Torque specification: 13 Nm

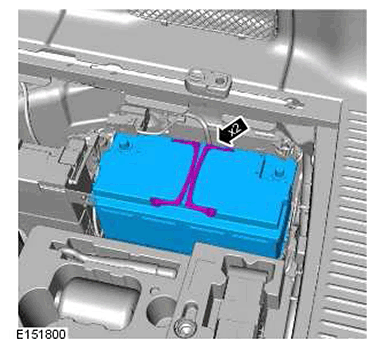

G11422135
