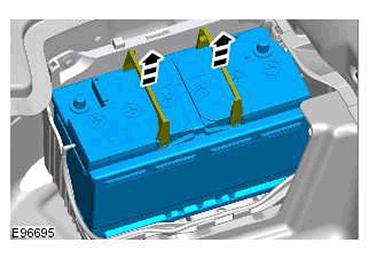

Battery - 4-Door (G1794436): Removal
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If a new battery is installed, the battery monitoring system (BMS) must be reset using Jaguar approved diagnostic equipment.
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Obtain and record the audio unit preset radio frequencies
-
NOTE: Where fitted.

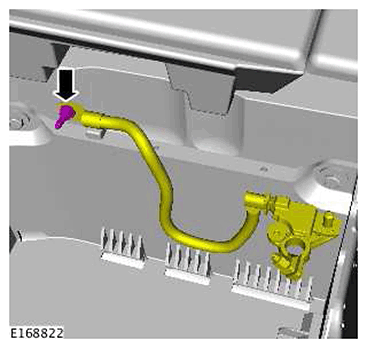

Torque specification: 6 Nm
-

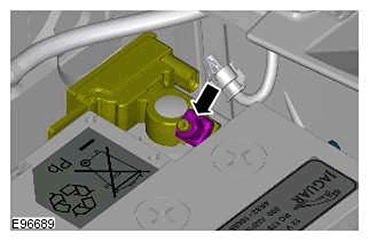

CAUTION: Make sure that the battery negative cable does not move when detaching the negative terminal from the battery.

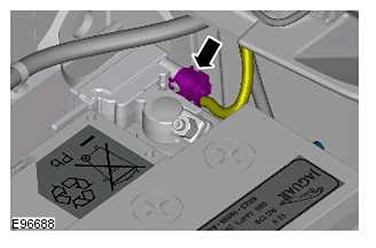

Torque specification: 6 Nm

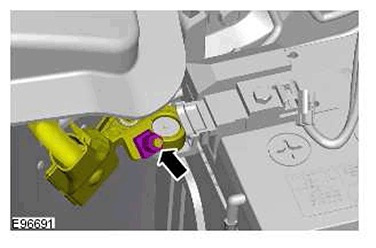

Torque specification: 13 Nm
