Auxiliary Battery - SPORTBRAKE (G1574152): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to Battery Disconnect and Connect  (General Procedures).

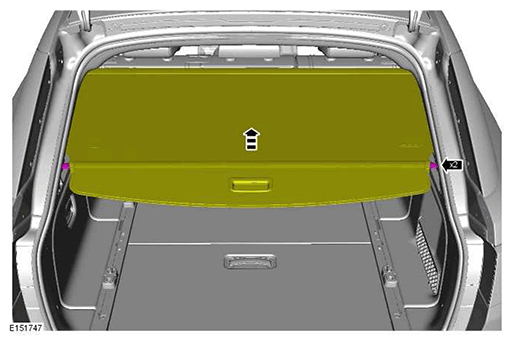

  2. G11422139

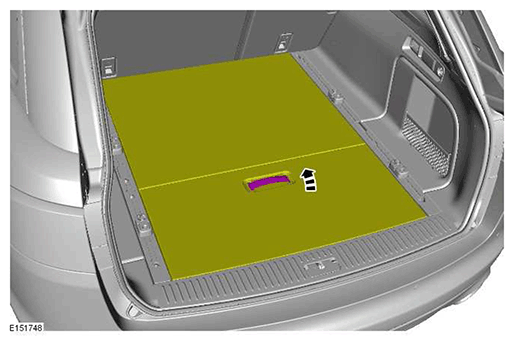

  3. G11422140

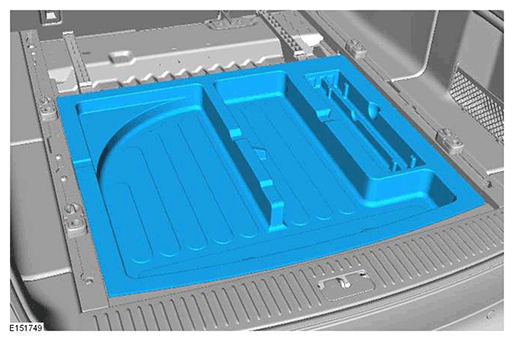

  4. G11422141

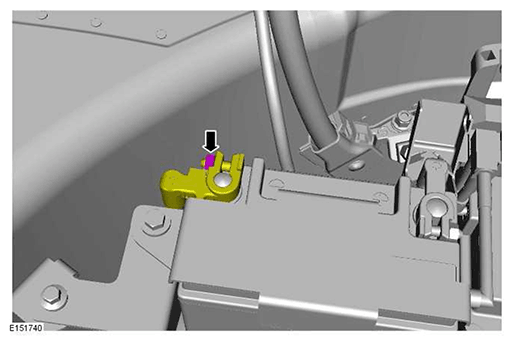

  5. G11422142

    Torque specification: 6 Nm

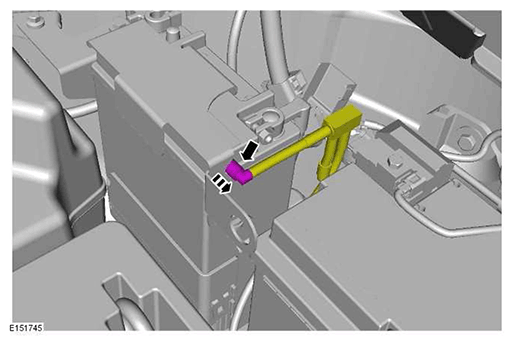

  6. G11422143

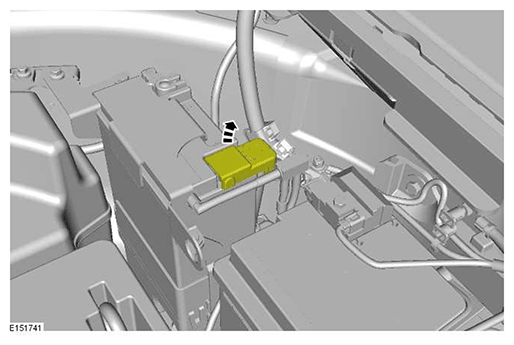

  7. G11422144

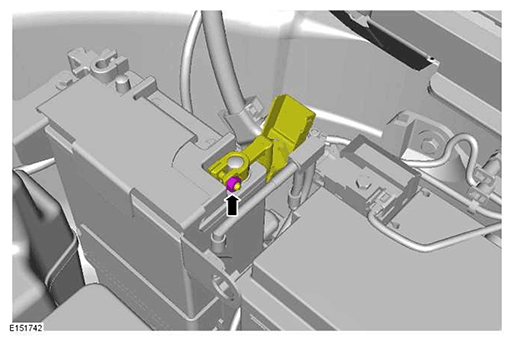

  8. G11422145

    Torque specification: 6 Nm

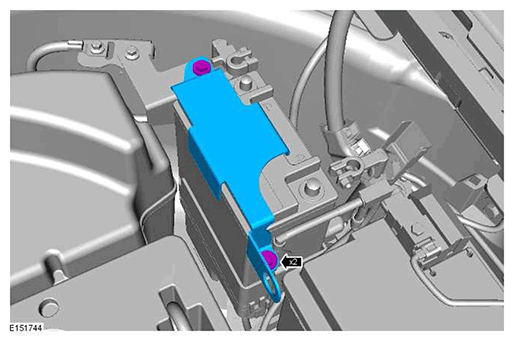

  9. G11422146

    Torque specification: 6.2 Nm

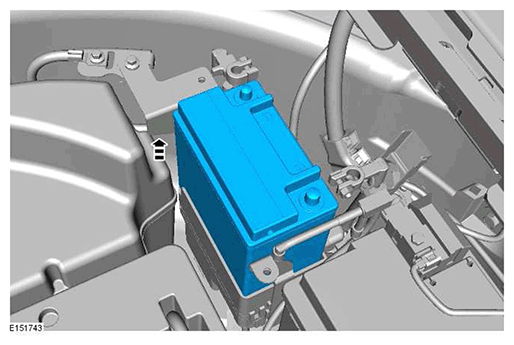

G11422147
