Battery Disconnect And Connect (G1033944): Disconnect

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a new battery is installed, the battery monitoring system (BMS) must be reset using Jaguar approved diagnostic equipment.
  1. Refer to Battery and Battery Charging Health and Safety Precautions .
  2. Obtain and record the audio unit preset radio frequencies.

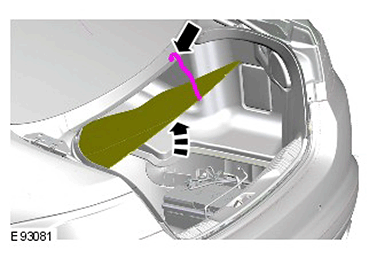

  3. G11422102

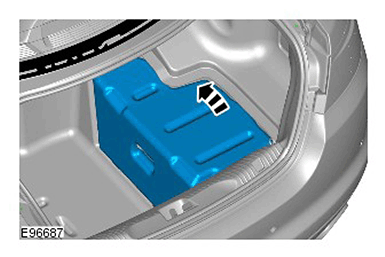

  4. NOTE: Where fitted.
    G11422103

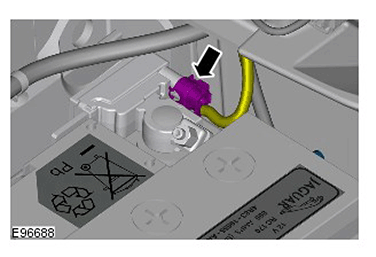

  5. CAUTION: Take extra care not to damage the wiring harness.
    G11422104

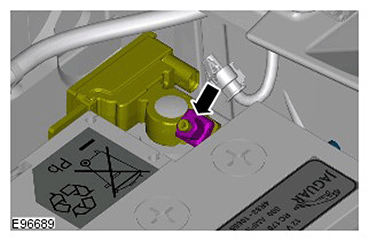

  6. G11422105

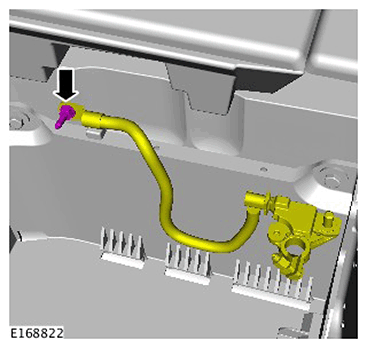

  7. CAUTION: Make sure that the battery negative cable does not move when detaching the negative terminal from the battery.
G11422106
