Battery Disconnect And Connect (G1033944): Connect

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

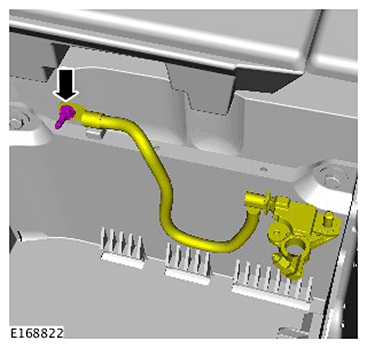

  1. CAUTION: Make sure that the battery negative cable to the body retaining bolt is not loose and fully tightened.
    G11422107

    Torque specification: 13 Nm

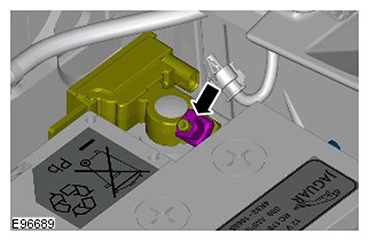

  2. G11422108

    Torque specification: 6 Nm

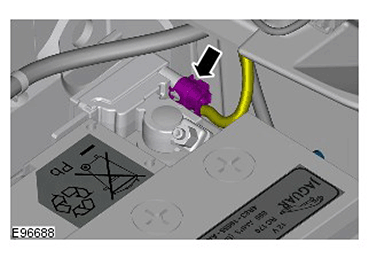

  3. G11422109

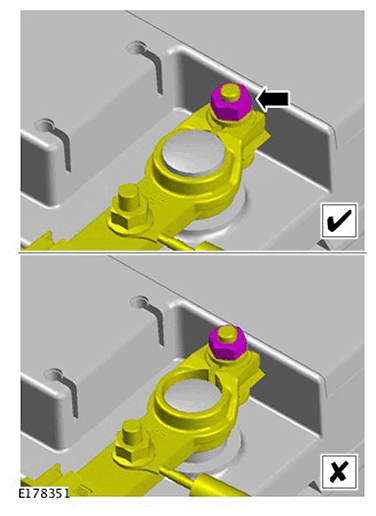

  4. NOTE: Make sure that both the positive and negative battery terminals are correctly located.
    G11422110

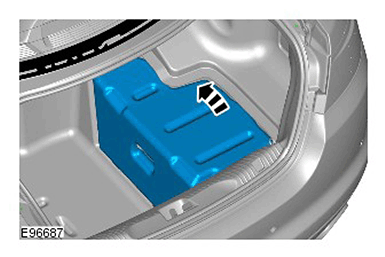

  5. NOTE: Where fitted.
    G11422111
  6. NOTE: This step is only necessary when installing a new battery.

    Using Jaguar approved diagnostic equipment, reset the battery monitoring system (BMS).

  7. Refer to Door Window Motor Initialization (Glass, Frames and Mechanisms, General Procedures).
  8. Enter the audio unit preset radio frequencies.
  9. Reset the clock to the correct time.
  10. Start the engine and allow to idle until the engine reaches normal operating temperature.
  11. Switch the engine off.
