GRX-3080 Diagnostic Battery Charger Display Keypad

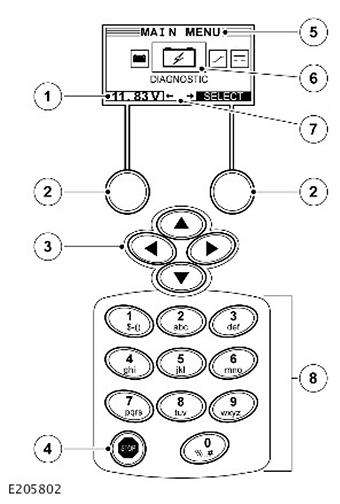

The GRX-3080 diagnostic battery charger has an integrated display and keypad, the display guides the user via onscreen navigation aids, directions and messages. The illustration (below) shows how the elements on the screen relate to the keypad and details the functions of the various keys:

KEY	DESCRIPTION	GRX-3080 USER INTERFACE
1	VOLTAGE  - Battery voltage displayed when first connected
2	SOFT KEYS  - Pressing the two soft keys linked to the bottom of the screen will perform the functions displayed above them. The functions change depending on the menu and test process
3	ARROW KEYS  - Press the ARROW keys to scroll through numerical values and navigate through menus and icons
4	STOP BUTTON  - Press STOP key anytime to stop the active mode
5	Title Bar  - The title bar shows the name of the current menu
6	Selection Area  - Contains selectable icons or dialogue boxes that display information and required response
7	Menu Screen Arrows  - When displayed in menu screens, the menu screen arrows shows which ARROW key on the keypad to press to display other icons or screens. The Up/Down Menu Screen Arrows indicate when to press the UP or DOWN keys to display the screens above and below the current screen The left/right menu screen arrows tell you when to use the LEFT or RIGHT keys to select an icon When displayed under a list of options, the menu screen arrows show you which keypad arrow to press to highlight a character or item in a list
8	Alphanumeric Keypad  - The alphanumeric keypad enters letters and numbers for the PAG code, VIN and Battery storage entry. It also can be used to customise personnel settings
