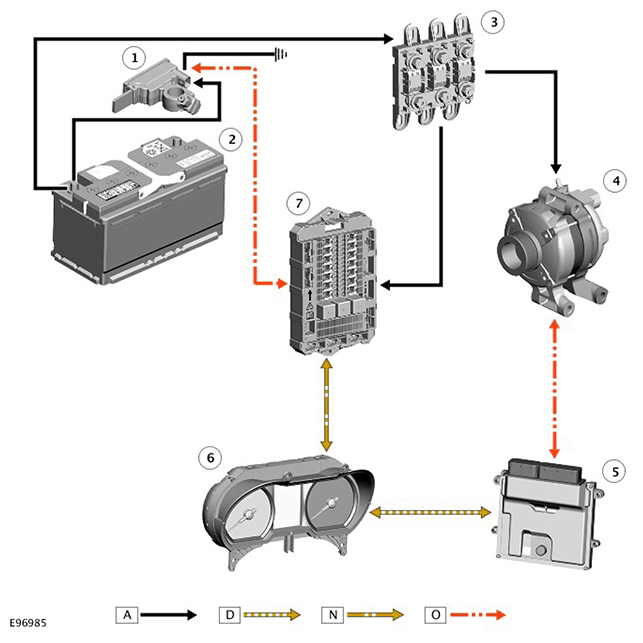

Control Diagram - TD4 2.2L Diesel Vehicles Only

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

ITEM	DESCRIPTION
1	Battery Monitoring System (BMS) control module
2	Battery
3	Battery junction box (BJB)
4	Generator
5	ECM (engine control module)
6	Instrument Cluster
7	Rear Junction Box (RJB)
