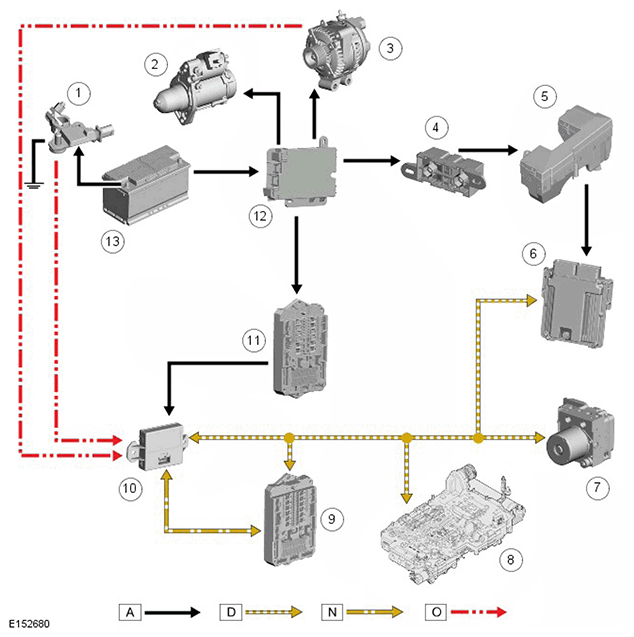

Control Diagram - Single Battery Vehicles
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery Monitoring System (BMS) control module |
| 2 | Starter motor |
| 3 | Generator |
| 4 | Megafuse |
| 5 | Engine Junction Box (EJB) |
| 6 | Engine Control Module |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Transmission Control Module (TCM) |
| 9 | Central Junction Box (CJB) |
| 10 | Gateway Module (GWM) |
| 11 | Rear Junction Box (RJB) |
| 12 | Battery Junction Box (BJB) |
| 13 | Battery |
