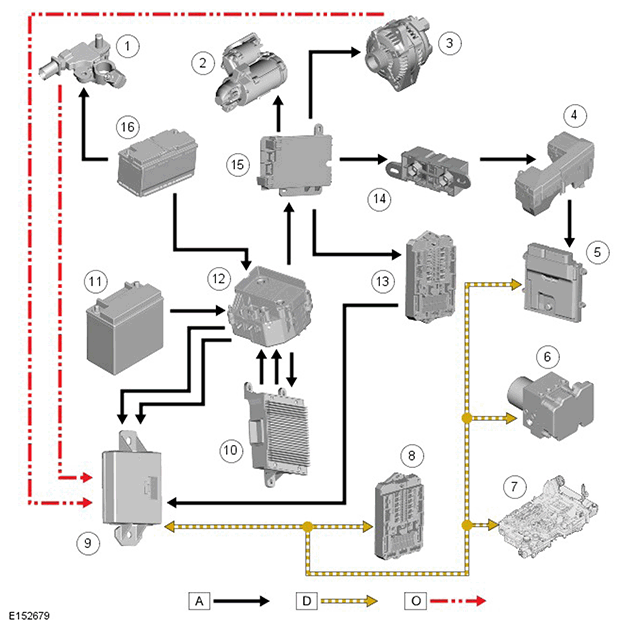

Control Diagram - Dual Battery System Vehicles
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery Monitoring System (BMS) control module |
| 2 | Tandem Solenoid Starter (TSS) motor |
| 3 | Generator |
| 4 | Engine Junction Box (EJB) |
| 5 | Engine Control Module (ECM) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Transmission Control Module (TCM) |
| 8 | Central Junction Box (CJB) |
| 9 | Gateway Module (GWM) |
| 10 | Dual Battery Module (DBM) |
| 11 | Secondary battery |
| 12 | Dual Battery Junction Box (DBJB) |
| 13 | Rear Junction Box (RJB) |
| 14 | Megafuse |
| 15 | Battery Junction box (BJB) |
| 16 | Primary battery |
