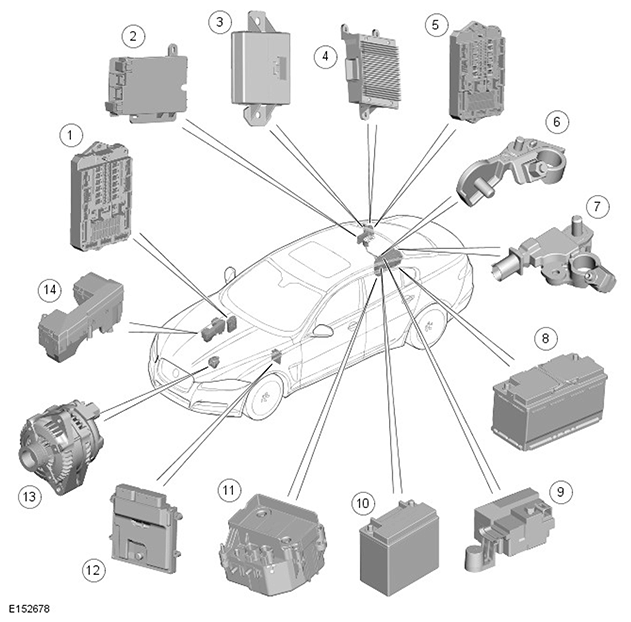

Component Location - Dual Battery System Vehicles
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Central Junction Box (CJB) |
| 2 | Battery Junction Box (BJB) |
| 3 | Gateway Module (GWM) |
| 4 | Dual Battery Module (DBM) |
| 5 | Rear Junction Box (RJB) |
| 6 | Battery to Battery Junction Box (BJB) terminal |
| 7 | Battery Monitoring System (BMS) control module |
| 8 | Battery |
| 9 | Transit relay |
| 10 | Secondary battery |
| 11 | Dual Battery Junction Box (DBJB) |
| 12 | Engine Control Module (ECM) |
| 13 | Generator |
| 14 | Engine Junction Box (EJB) |
