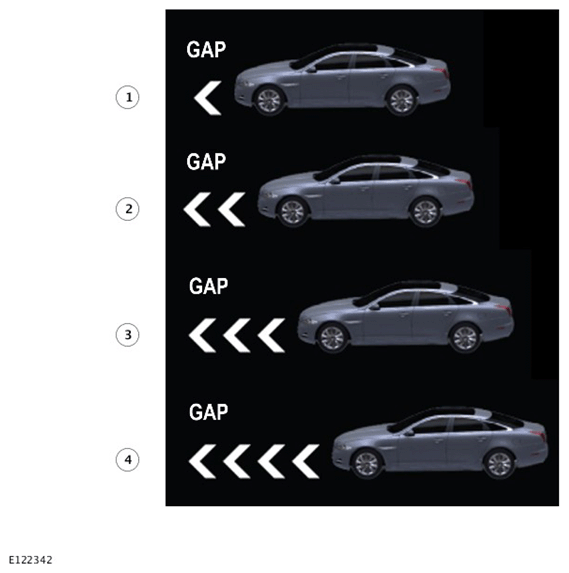

Gap Setting Display Options
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Gap setting = 1 second |
| 2 | Gap setting = 1.4 seconds |
| 3 | Gap setting = 1.8 seconds |
| 4 | Gap setting = 2.2 seconds |
The gap settings are changed using the time gap increase and decrease switches which are located on the right steering wheel switchpack. The switches are connected via fly leads to the clockspring. The gap switches are resistive ladder type switches which vary the resistance of a 5 volt signal sent to them. The signal is returned along a LIN bus, via the clockspring to the CJB. The CJB routes the selected gap setting signals to the adaptive speed control radar sensor on the high speed CAN bus.
The time gap will return to the default gap (the third setting) each time the ignition is cycled.
