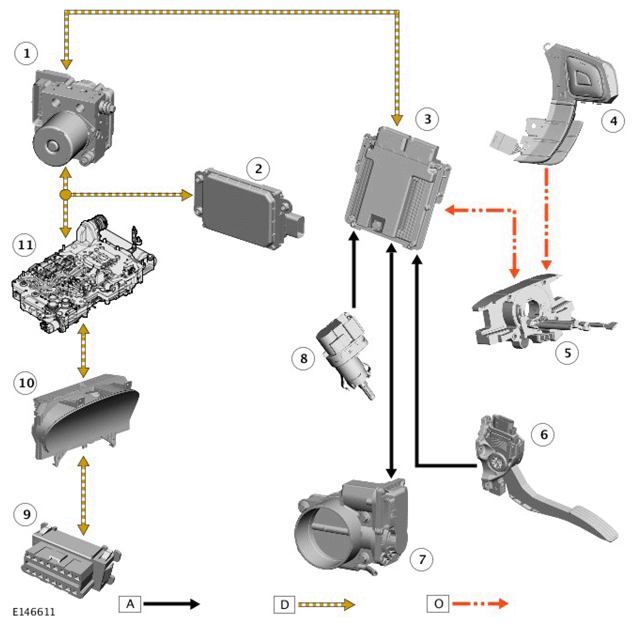

Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN (controller area network) bus; O
= LIN (local interconnect network) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Adaptive speed control module |
| 3 | Engine Control Module (ECM) |
| 4 | Right steering wheel switchpack |
| 5 | Clockspring |
| 6 | Accelerator Pedal Position (APP) sensor |
| 7 | Electric throttle |
| 8 | Stop lamp switch |
| 9 | Diagnostic socket |
| 10 | Instrument cluster |
| 11 | Transmission Control Module (TCM) |
