Accelerator Pedal (G1060691): Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Jaguar XF, 2014 Jaguar XF, 2013 Jaguar XF, 2012 Jaguar XF, and 2011 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

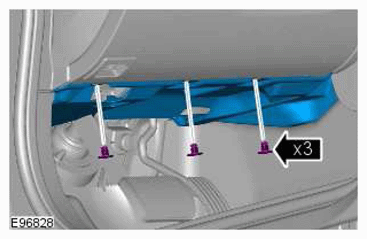

  2. G11424272

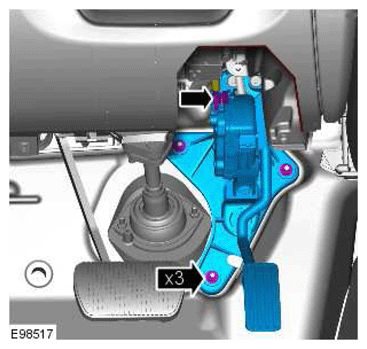

  3. G11424273

    Torque: 9 Nm
