Ignition Coil-On-Plug (G1551319): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).

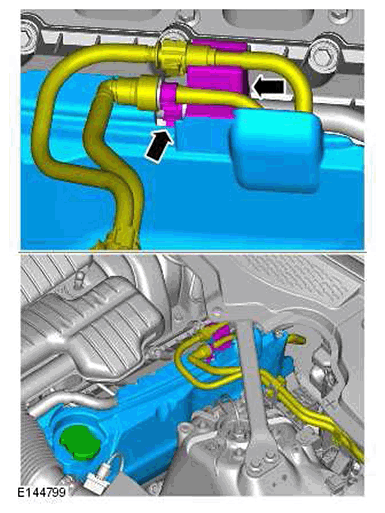

  2. G11416506

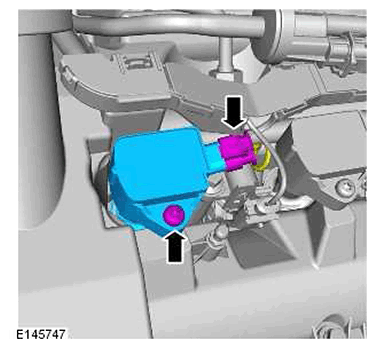

  3. G11416507

    Torque Specification: 7 Nm

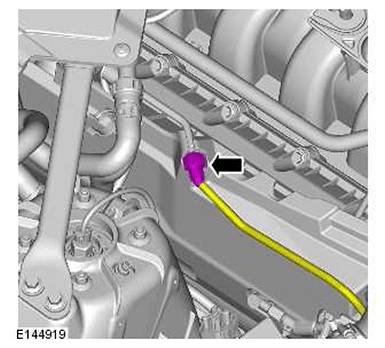

  4. G11416508

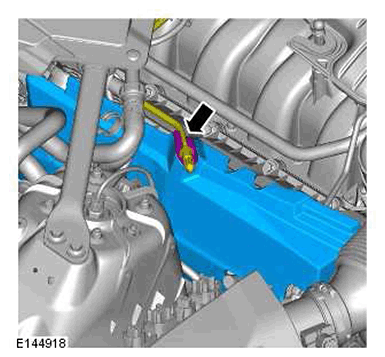

  5. G11416509
  6. NOTE: LH illustration shown, RH is similar.
    G11416510

    Torque Specification: 7 Nm

  7. NOTE:
    • The step must be carried out on both sides.
    • LH illustration shown, RH is similar.

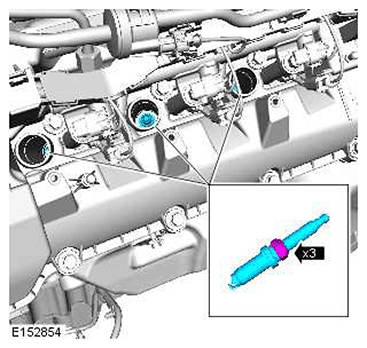

    G11416511

    Torque Specification: 20 Nm
