Component Location

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

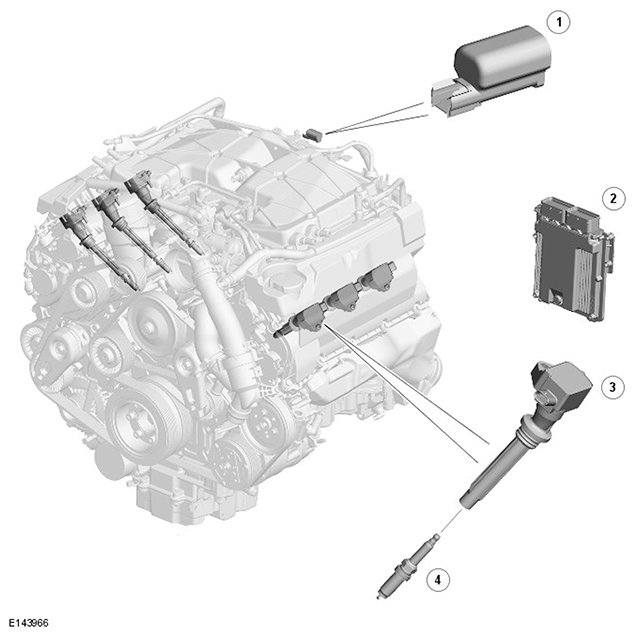

G11416497
ITEM DESCRIPTION
1 Radio Frequency Interference (RFI) suppressor
2 Engine Control Module (ECM)
3 Ignition coil (6 off)
4 Spark plug (6 off)
