Front Muffler (G1569063): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: The procedure must be carried out on both sides.

    Refer to: Rear Muffler  (Removal and Installation).

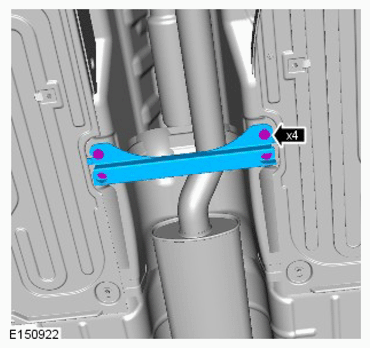

  3. G11424028

    Torque specification  : 6 Nm

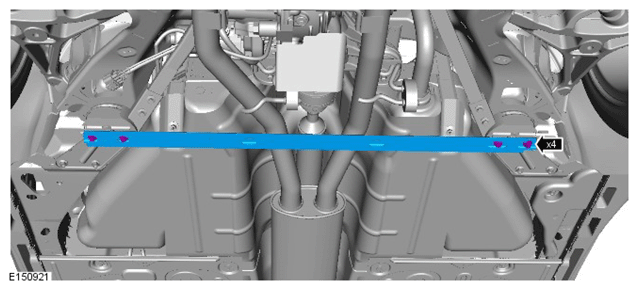

  4. G11424029

    Torque specification  : 30 Nm

  5. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: Discard the clamp if required.

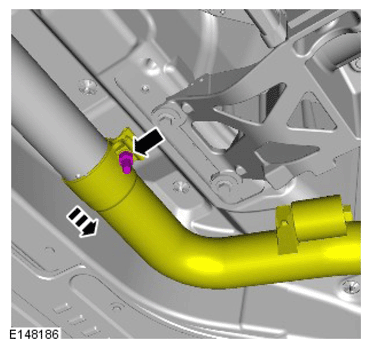

    G11424030

    Torque specification  : 55 Nm

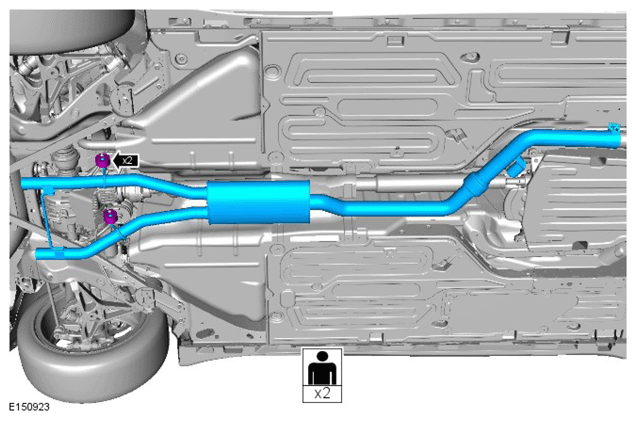

  6. G11424031
  7. NOTE: Do not disassemble further if the component is removed for access only.

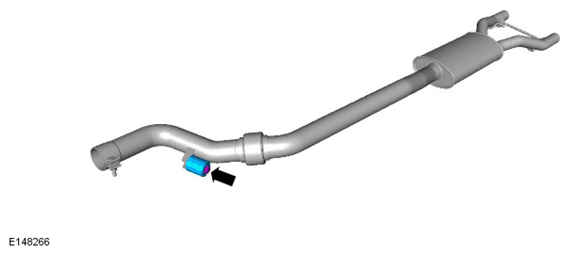

    G11424032

    Torque specification  : 18 Nm
