Catalytic Converter (G1569061): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).

  3. Refer to: Air Deflector (Removal and Installation).

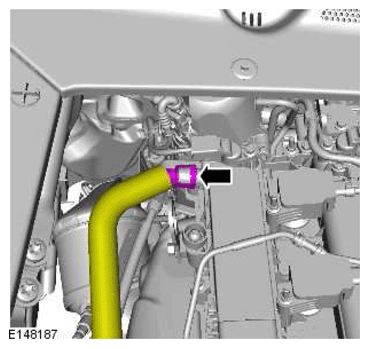

  4. G11423994

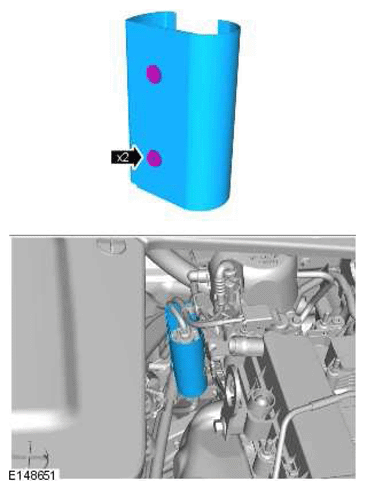

  5. G11423995

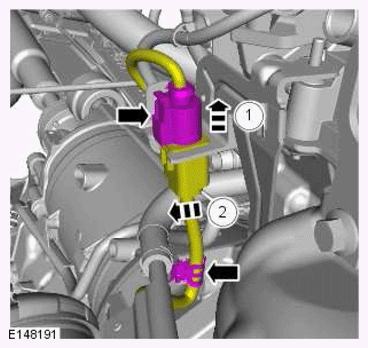

  6. NOTE: The cover is removed for clarity.
    G11423996

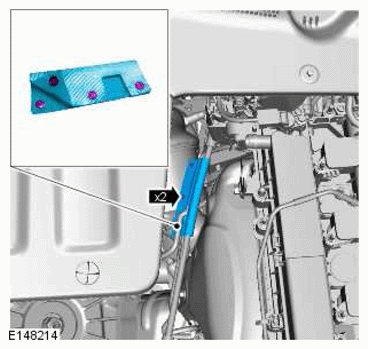

  7. G11423997

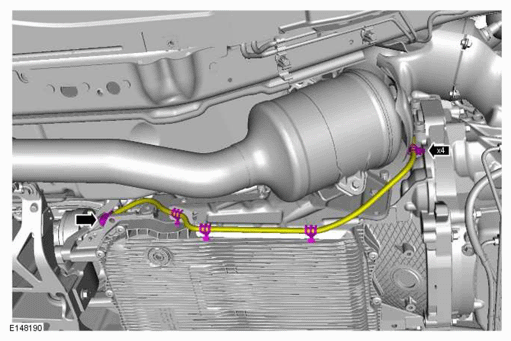

  8. G11423998

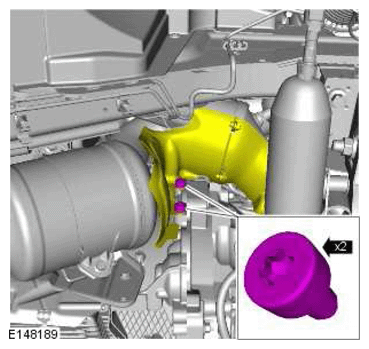

  9. G11423999

    Torque specification  : 35 Nm

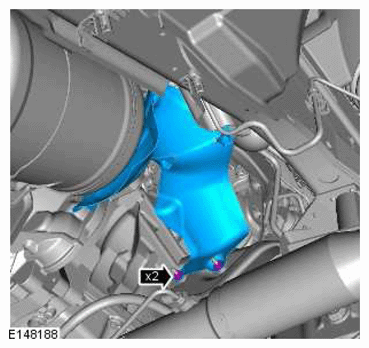

  10. G11424000

    Torque specification  : 9 Nm

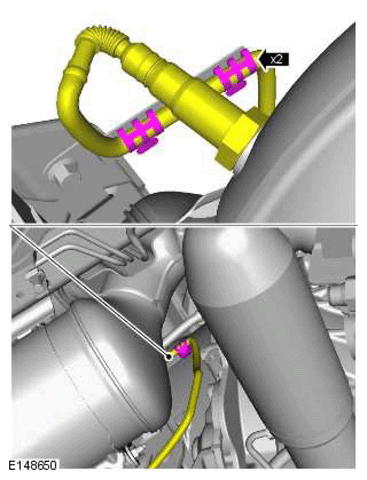

  11. G11424001

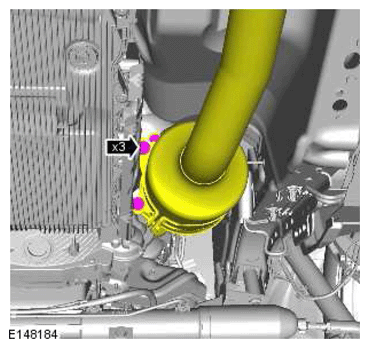

  12. G11424002

    Torque specification  : 25 Nm

  13. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: Discard the clamp if required.

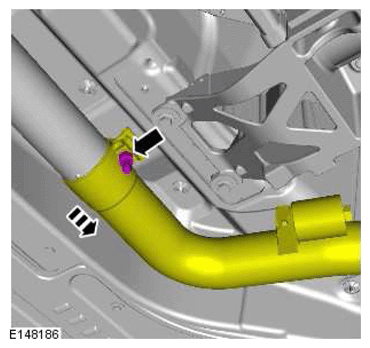

    G11424003

    Torque specification  : 55 Nm

  14. CAUTION: Loosen the lower and rear retaining bolts no more than 5 turns each (do not remove the retaining bolts). This will aid installation of the catalytic converter.
    NOTE: Remove and discard the gasket.

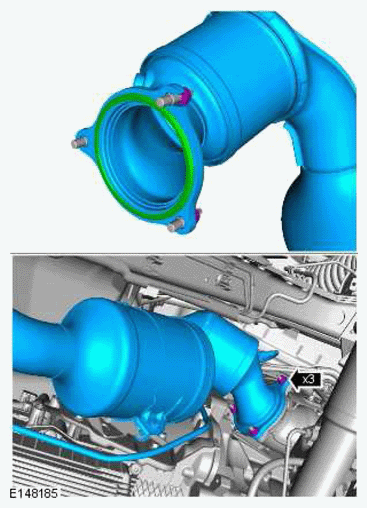

    G11424004

    Torque specification  : 25 Nm

  15. NOTE: Do not disassemble further if the component is removed for access only.

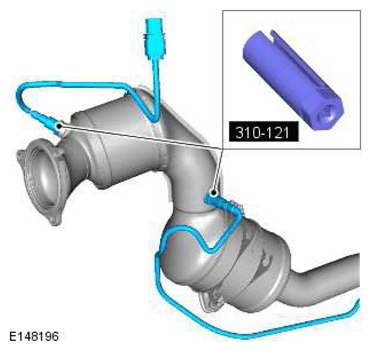

    G11424005

    Special Tool(s): 310-121

    Torque specification: 48 Nm
