Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

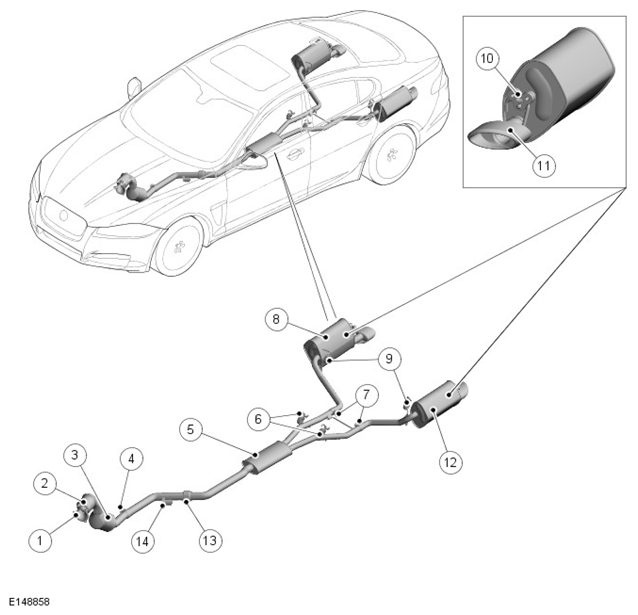

| ITEM | DESCRIPTION |
|---|---|
| 1 | Manifold flange |
| 2 | Mid-catalyst Heated Oxygen Sensor (HO2S) |
| 3 | Catalytic converter and Post catalyst HO2S |
| 4 | Clamp |
| 5 | Center silencer |
| 6 | Mounting rubber (2 off) |
| 7 | Clamp |
| 8 | Rear right silencer |
| 9 | Mounting rubber (2 off) |
| 10 | Mounting rubber (2 off) |
| 11 | Exhaust trim (2 off) |
| 12 | Rear left silencer |
| 13 | Flexible coupling |
