Special Tool(S)
| 307-452 Wrench, Transmission Filler Plug |
WARNING:
- Observe due care when draining, as the fluid can be very hot.
- Observe due care when working near a hot exhaust system.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Air Deflector (Removal and Installation).
- Place a container under the transmission.
-

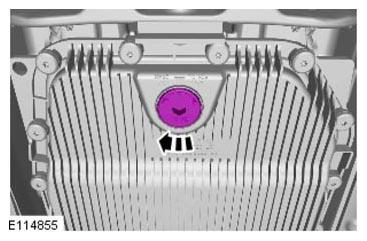

CAUTION: Discard the seal.
Special Tool(s): 307-452
-
CAUTION: Discard the component.
- Allow the fluid to drain.
-
CAUTION: Make sure that a new component is installed.
torque specification: 8 Nm
-
NOTE: Use transmission fluid meeting Jaguar specification.
Refill the transmission with fluid.

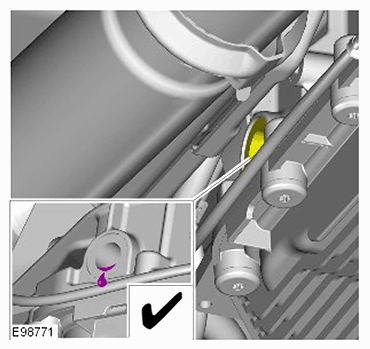

Allow the transmission fluid to drain from the transmission fluid filler plug hole until the flow almost stops.
-
NOTE: Install a new sealing washer.

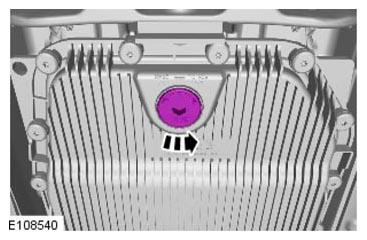

- Loosely install the transmission fluid fill plug.
-
CAUTION: Make sure the transmission fluid fill plug is tightened to the correct specification. Failure to follow this instruction may result in damage to the vehicle.
- To make sure the transmission fill plug is torqued to the correct specification. Using the special tool and torque wrench the following calculation steps must be followed.
- Step 1. Multiply 35 Nm by the effective length of the torque wrench (1).
- Step 2. Add the effective length of the special tool (2) to the effective length of the torque wrench (1).
- Step 3. Divide the total of step 1 by the total of step 2.
- Step 4. Set the torque wrench to the figure arrived at in step 3.
- Tighten the transmission fluid fill plug to the torque given by the calculation.
- Carry out a transmission fluid level check.
Refer to: Transmission Fluid Level Check (GENERAL PROCEDURES).
