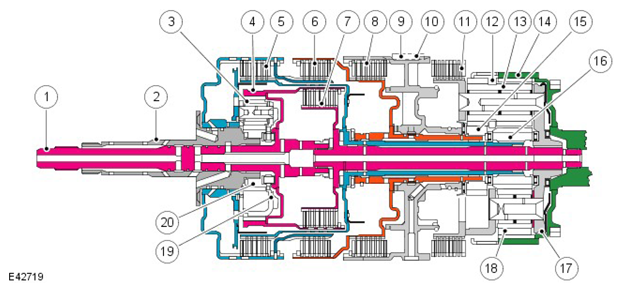

Shift Elements
| ITEM | DESCRIPTION |
|---|---|
| 1 | Turbine shaft |
| 2 | Stator shaft |
| 3 | Single web planetary gear train |
| 4 | Ring gear 1 |
| 5 | Clutch A |
| 6 | Clutch B |
| 7 | Clutch E |
| 8 | Brake clutch C |
| 9 | Fixed connection to transmission housing |
| 10 | Shaft key |
| 11 | Brake clutch D |
| 12 | Double web planetary gear train |
| 13 | Planetary gears - long |
| 14 | Ring gear 2 |
| 15 | Sunwheel 2 |
| 16 | Sunwheel 3 |
| 17 | Double web planetary gear carrier |
| 18 | Planetary gears - short |
| 19 | Single web planetary gear carrier |
| 20 | Sunwheel 1 |
The shift elements are three rotating multiplate clutches (A, B and E) and two fixed multiplate brakes © and D). All shifts from 1st to 6th gears are power-on overlapping shifts. Overlapping shifts can be described as one of the clutches continuing to transmit drive at a lower main pressure until the next required clutch is able to accept the input torque.
The shift elements, clutches and brakes are actuated hydraulically. Fluid pressure is applied to the required clutch and/or brake, pressing the plates together and allowing drive to be transmitted through the plates. The purpose of the shift elements is to perform power-on shifts with no interruption to traction and smooth transition between gear ratios.
