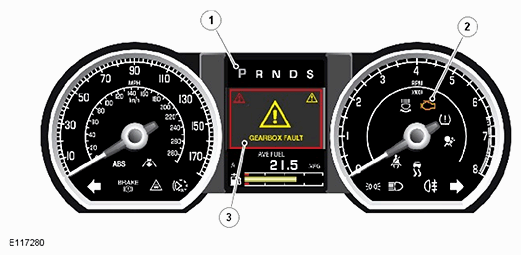

Instrument Cluster

G11542291
ITEM DESCRIPTION
1 Transmission selected gear status
2 MIL (malfunction indicator lamp)
3 Message center

The instrument cluster is connected to the TCM via the high speed CAN bus. Transmission status is transmitted by the TCM and displayed to the driver in one of two displays in the instrument cluster. For additional information, refer to 413-01 Instrument Cluster.
