Single Web Planetary Gear Train
The single web planetary gear train comprises:
- Sunwheel
- Three (naturally aspirated versions) or four (SC versions) planetary gears
- Planetary gear carrier (spider)
- Ring gear or annulus.

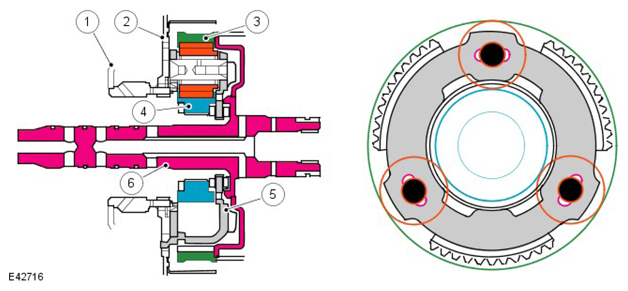

| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder |
| 2 | Baffle plate |
| 3 | Ring gear |
| 4 | Sun gear |
| 5 | Planetary gear spider |
| 6 | Torque converter input shaft |
