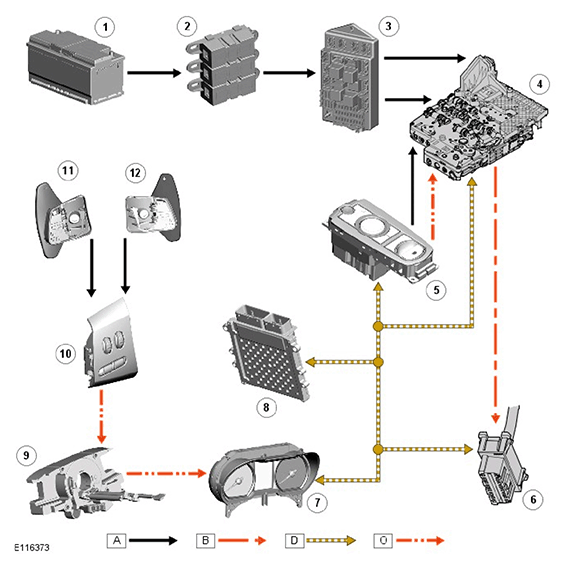

Control Diagram
NOTE:
A = Hardwired; B = K bus; D = High speed CAN bus; O = LIN (local interconnect network) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (175 A megafuse) |
| 3 | CJB (central junction box) |
| 4 | TCM |
| 5 | JaguarDrive selector |
| 6 | Diagnostic socket |
| 7 | Instrument cluster |
| 8 | ECM |
| 9 | Clockspring |
| 10 | Steering wheel audio switches |
| 11 | Downshift paddle switch |
| 12 | Upshift paddle switch |
