Removal And Installation: Installation

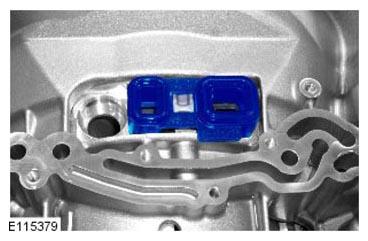

  1. CAUTION:
    • Make sure that when fully fitted, all seals protrude by the same amount.
    • Install the new seals.
    G11291650
    • Install a new seal block.

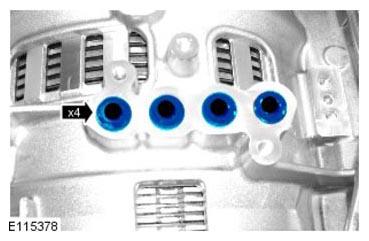

  2. CAUTION:
    • Install the new seals.
    • Make sure that when fully fitted, all seals protrude by the same amount.
    G11291649

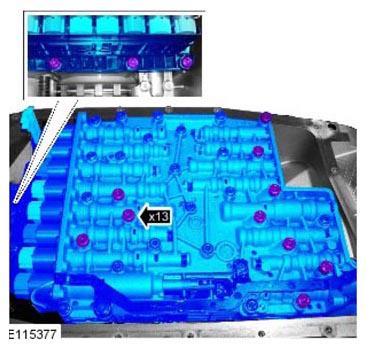

  3. CAUTION: Make sure the manual park release is correctly engaged.
    G11291648

    torque specification: 8 Nm

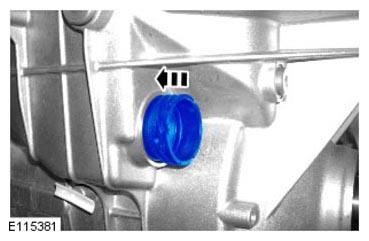

  4. CAUTION: Make sure that a new component is installed.
    G11291654

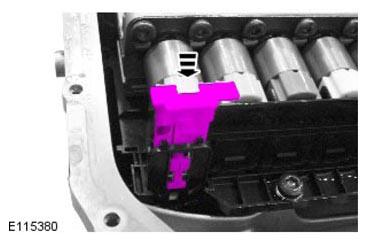

  5. G11291655

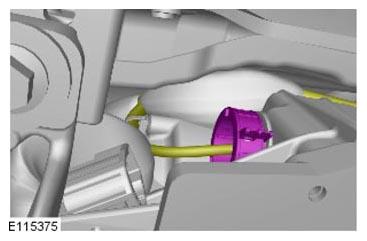

  6. G11291645
  7. Refer to: Transmission Fluid Pan, Gasket and Filter  (REMOVAL AND INSTALLATION).
  8. Refer to: Battery Disconnect and Connect (General Procedures).
  9. If a new component has been installed, configure using Jaguar approved diagnostic equipment.
