Removal And Installation: Removal

CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Transmission Fluid Cooler Tubes (Transmission/Transaxle Cooling - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133, Removal and Installation).
  4. Refer to: Catalytic Converter (Exhaust System - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133, Removal and Installation).
  5. G11542356
  6. G11542357

    Special Tool(s):  303-1435

  7. Using the special tool, support the engine.

    Special Tool(s):  303-021

  8. G11542358
  9. G11542359
  10. G11287261
  11. G11293775
  12. G11542362
  13. G11285084
  14. G11291706
  15. G11542365

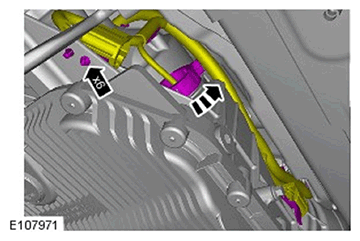

  16. G11542366
  17. G11291671

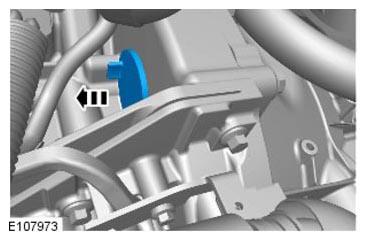

  18. G11291670
  19. G11291672
    • Make sure that the alignment mark is visible through the inspection hole on removal of the last torque converter bolt.
  20. CAUTION: Under no circumstances must the flexible coupling (or its fixings) be loosened or removed from the driveshaft.
    G11291674
  21. WARNING: Make sure that the transmission is secured with suitable retaining straps.

    Using a suitable stand, support the transmission.

  22. G11291676
  23. G11542372
  24. CAUTION: Make sure that the torque converter remains in the transmission.
    NOTE: This step requires the aid of another technician.

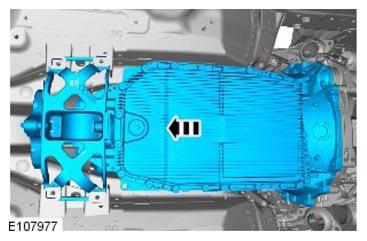

    G11291682
    • Install the torque converter retainer.
  25. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Clamp the hoses to minimize coolant loss.
    G11291685
  26. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Clamp the hoses to minimize coolant loss.
    G11291686
  27. G11291687
