Removal And Installation: Installation

  1. G11291687

    torque specification: 5 Nm

  2. G11291686
  3. G11291685

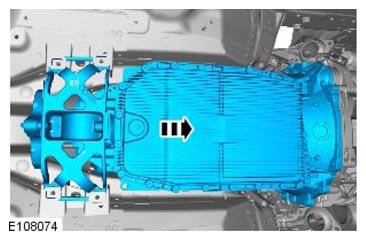

  4. CAUTION: Make sure that the torque converter remains in the transmission.
    NOTE: This step requires the aid of another technician.
    G11291695
    • Remove the torque converter retainer.

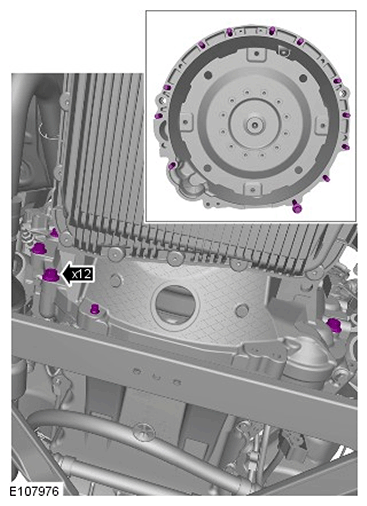

  5. G11542372

    torque specification: 45 Nm

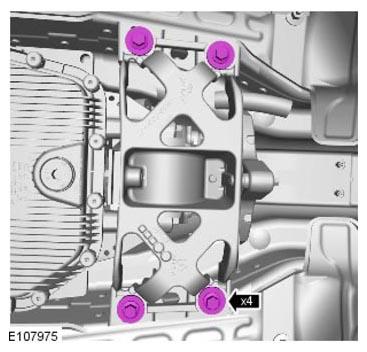

  6. G11291676

    torque specification: 45 Nm

  7. Remove the support.

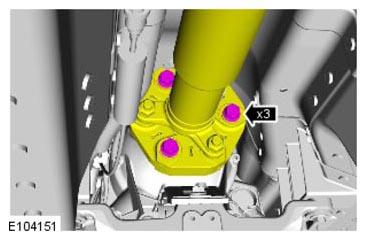

  8. G11291674

    torque specification: 127 Nm

  9. CAUTION: Only rotate the crankshaft clockwise.

    Make sure that the alignment mark is visible through the inspection hole on installation of the first torque converter bolt.

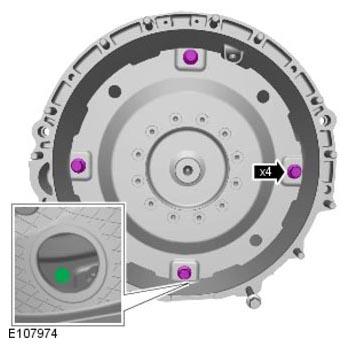

  10. G11291672

    torque specification: 45 Nm

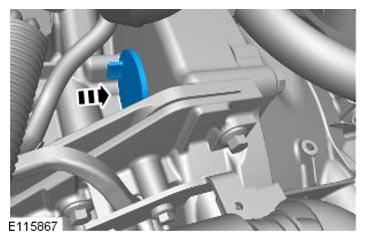

  11. G11291703

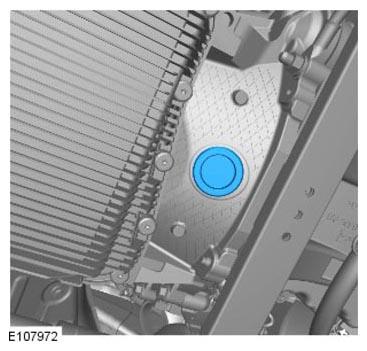

  12. G11291671

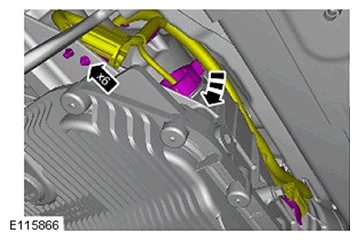

  13. G11542387

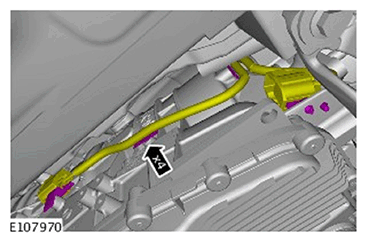

  14. G11542365

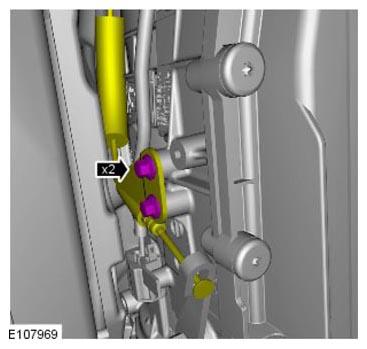

  15. G11291706

    torque specification: 10 Nm

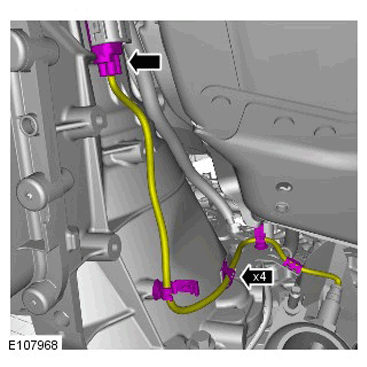

  16. G11285084

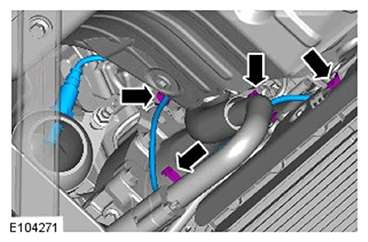

  17. G11542362
  18. G11293775

    torque specification: 48 Nm

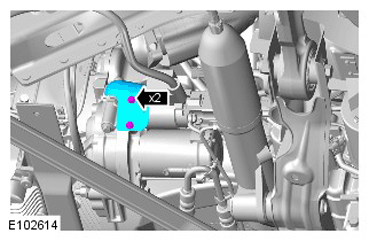

  19. G11287261

    torque specification: 6 Nm

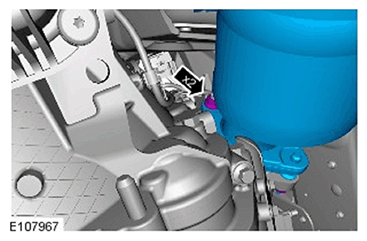

  20. G11542359

    torque specification: 40 Nm

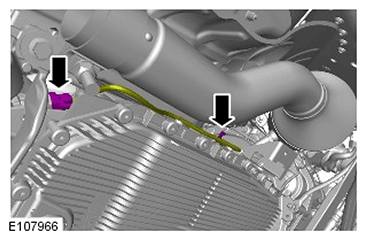

  21. G11542358
  22. Using the special tool, support the engine.

    Special Tool(s):  303-021

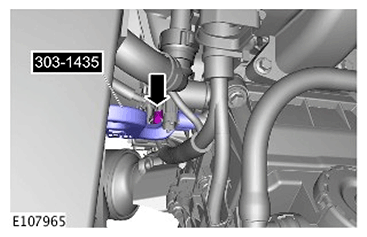

  23. G11542357

    Special Tool(s):  303-1435

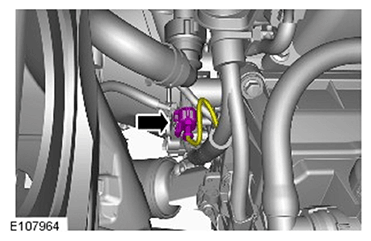

  24. G11542356
  25. Refer to: Catalytic Converter (Exhaust System - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133, Removal and Installation).
  26. Refer to: Transmission Fluid Cooler Tubes (Transmission/Transaxle Cooling - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133, Removal and Installation).
  27. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  28. Check and top up the cooling system as required.
  29. Set the heater controls to HOT.
  30. CAUTION: Observe the engine temperature warning light. If the warning light is displayed, switch off immediately and allow to cool. Failure to follow this instruction may cause damage to the vehicle.

    Start the engine and allow to idle until hot air is emitted at the face registers.

  31. CAUTION: Observe the engine temperature warning light. If the warning light is displayed, switch off immediately and allow to cool. Failure to follow this instruction may cause damage to the vehicle.

    Raise the engine speed to 2000 RPM and maintain at 2000 RPM until the engine cooling fan operates.

  32. CAUTION: Switch off the engine and allow the coolant temperature to go cold.

    Switch the engine off and allow to cool.

  33. Visually check the engine and cooling system for signs of coolant leakage.
  34. WARNING:
    • When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
    • Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
    CAUTION:
    • Make sure the coolant level remains above the "COLD FILL RANGE" lower level mark.
    • Anti-freeze concentration must be maintained at 50%.
    NOTE: When the cooling system is warm, the coolant will be approximately 10mm above the upper level mark on the expansion tank with the cap removed.

    Check and top-up the coolant if required.

  35. Refer to: Transmission Fluid Level Check  (GENERAL PROCEDURES).
