Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. G11291629

    Special Tool(s):  307-613

  4. CAUTION:
    • Take extra care not to damage the edges of the component.
    • Discard the seal.

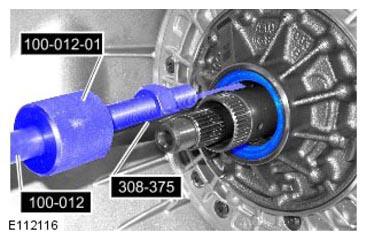

    G11291630

    Special Tool(s):  100-012, 100-012-01, 308-375
