Removal And Installation: Installation

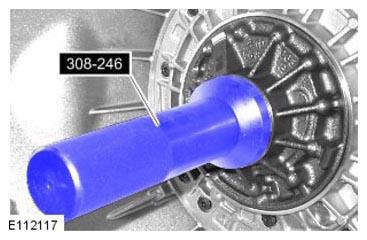

  1. CAUTION: Install a new seal.
    G11291631

    Special Tool(s):  308-246

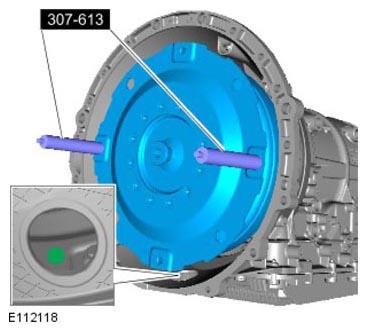

  2. NOTE: Make sure that the alignment mark is visible through the inspection hole as illustrated.
    G11291632

    Special Tool(s):  307-613

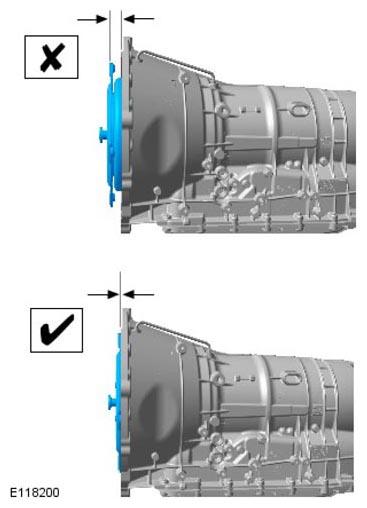

  3. CAUTION: Make sure the torque converter is fully located into the oil pump drive.
    G11291633
  4. Refer to: Battery Disconnect and Connect (General Procedures).
