Removal And Installation: Removal

  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. CAUTION: Discard the nut.
    G11291640

    Special Tool(s):  205-053

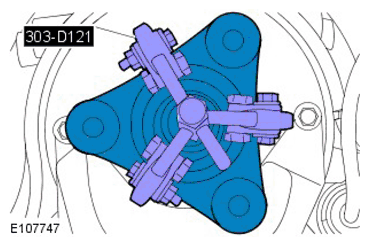

  4. G11291641

    Special Tool(s):  303-D121

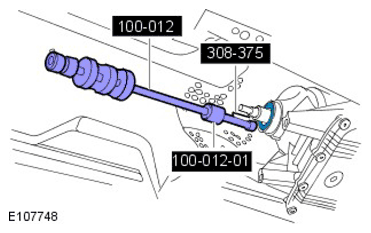

  5. CAUTION: Discard the seal.
    G11291642

    Special Tool(s):  100-012, 100-012-01, 308-375
