Removal And Installation: Installation

  1. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Install a new seal.

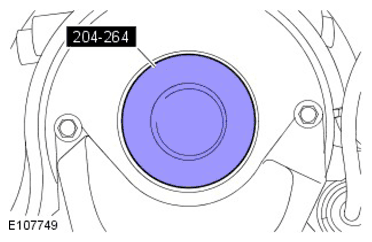

    G11291643

    Special Tool(s):  204-264

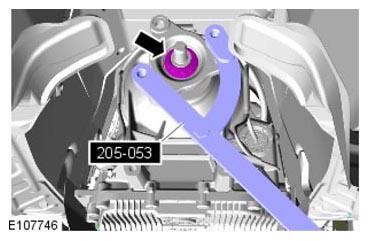

  2. WARNING: Make sure that a new nut is installed.
    G11291640

    torque specification: 60 Nm

  3. Refer to: Battery Disconnect and Connect (General Procedures).
