Removal And Installation: Installation

Vehicles with carbon ceramic brakes

CAUTION:
• Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
• Using power tools may result in damage to the wheel nuts. Make sure the wheel nuts are installed using hand tools only.

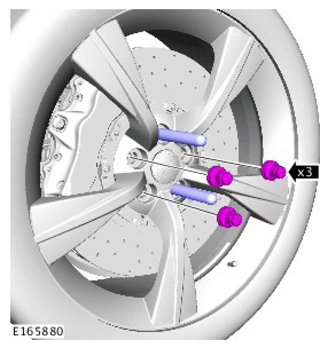

1. Install the wheel and tire over the guide pins and fit 3 wheel nuts.

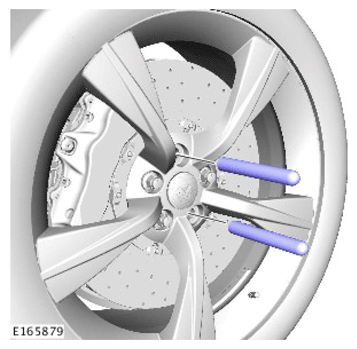

2. Remove the guide pins.
CAUTION: Using power tools may result in damage to the wheel nuts. Make sure the wheel nuts are installed using hand tools only.

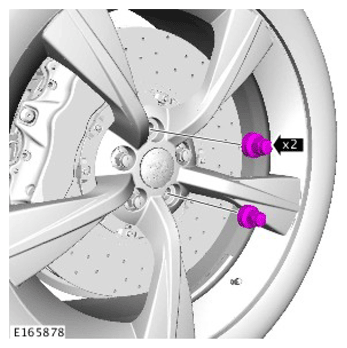

3. Remove 2 opposing wheel nuts.
4. Tighten the wheel nuts in the indicated sequence.
   1. TORQUE SPECIFICATION: 112 Nm

   All vehicles

WARNING: Make sure to support the vehicle with axle stands.
5. Raise and support the vehicle.

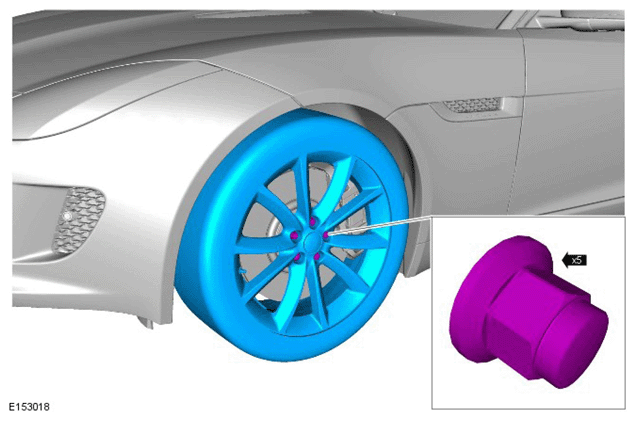

6. TORQUE SPECIFICATION: 112 Nm
