Removal And Installation: Removal

  1. Disconnect the battery ground cable.

    For additional information, refer to: BATTERY AND CHARGING SYSTEM - GENERAL INFORMATION .

    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Remove the LH rear wheel and tire.

    For additional information, refer to: Wheel and Tire .

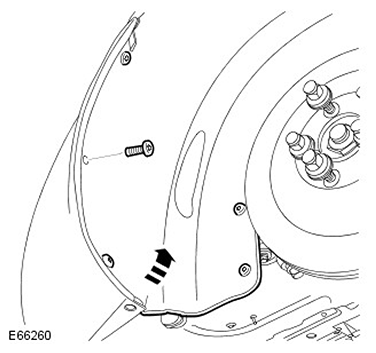

  4. Release the rear lower edge of the rear fender splash shield.
    G11504260
    • Remove the 5 Torx bolts.
    • Tie the splash shield aside.

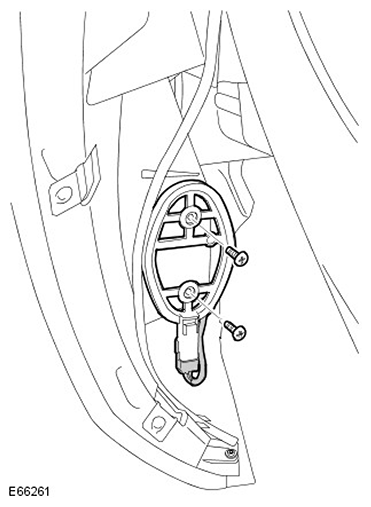

  5. Remove the tire pressure antenna.
    • Disconnect the electrical connector.
    • Remove the 2 clips.
    G11504261
