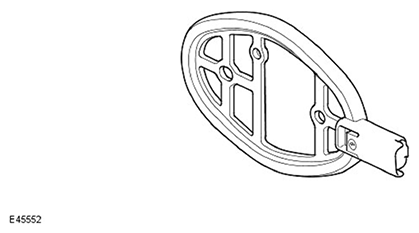

Description And Operation: Overview: Initiators

Four initiators are fitted to the vehicle. The front initiators are located near the front of the front wheel arches, behind the fender splash shields. The rear initiators are located at the rear of the rear wheel arches, behind the fender splash shields. Each initiator has a connector which connects to the vehicle body harness.

The initiator is a passive, LF transmitter. The initiators transmit their signals which are received by the tire pressure sensors, prompting them to modify their mode status.

The TPMS module energizes each initiator in turn using LF drivers. The corresponding tire pressure sensor detects the LF signal and responds by modifying the mode status within the RF transmission.
