Removal And Installation: Removal
-
Raise and support the vehicle.
- Remove the LH rear wheel and tire.
For additional information, refer to: Wheel and Tire

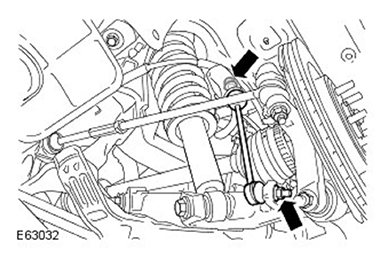

Remove the LH stabilizer bar link.
- Remove and discard the 2 nuts.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
NOTE:
Use an additional wrench to prevent the ball joint rotating.
