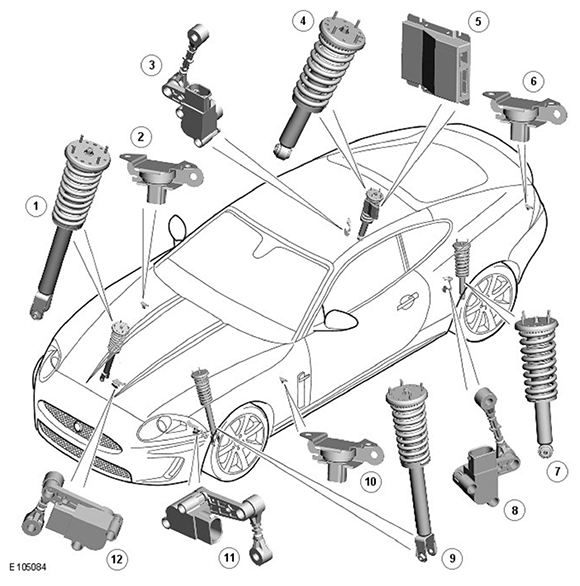

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | RH (right hand) front spring and damper assembly |
| 2 | RH front accelerometer |
| 3 | RH rear suspension height sensor |
| 4 | RH rear spring and damper assembly |
| 5 | ADCM (adaptive damping control module) |
| 6 | Rear accelerometer |
| 7 | LH (left hand) rear spring and damper assembly |
| 8 | LH rear suspension height sensor |
| 9 | LH front spring and damper assembly |
| 10 | LH front accelerometer |
| 11 | LH front suspension height sensor |
| 12 | RH front suspension height sensor |
