Special Tool(S): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check all timing components for wear and install new components if required.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Timing Cover
CAUTION: An M16 washer must be used to prevent damage to the crankshaft on installation.

Install the crankshaft pulley bolt.

Torque Specification: 20 Nm
CAUTION: Only rotate the crankshaft clockwise.

Install the special tool.

Special Tool(s): 303-1447
- Install the special tool.
- Special Tool(s): JLR-303-1304
Remove the crankshaft pulley bolt.

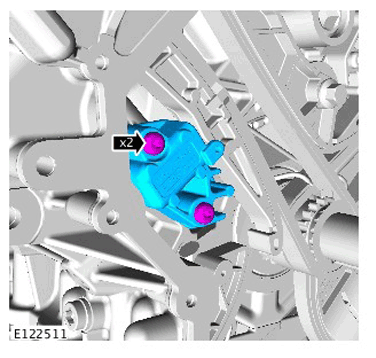

Remove the timing chain tensioner.
Remove the variable valve timing (VVT) unit bolts.
CAUTION: If the variable valve timing (VVT) units are knocked or dropped then new VVT(s) must be installed.

Remove the timing chain and VVT units.

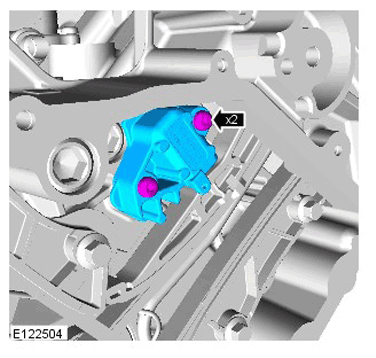

Remove the timing chain tensioner.
Release the oil drain tube.
CAUTION: If the VVT is knocked or dropped then new VVT(s) must be installed.

Remove the timing chain with the VVT units.
CAUTION: Discard the friction washer.
