Special Tool(S): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

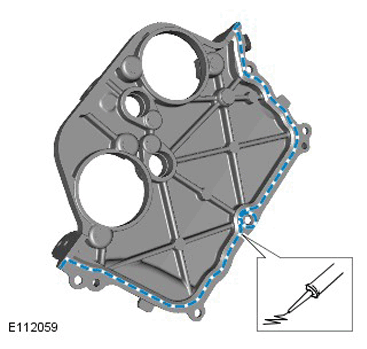

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

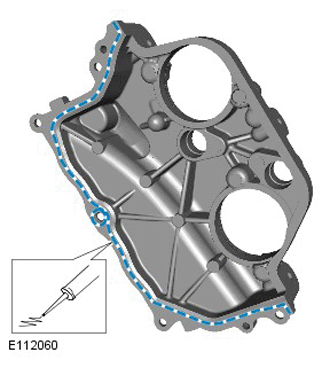

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Upper Timing Cover Bolts Tightening Sequence
Courtesy of OF JAGUAR CARS INC

Torque Specification: 12 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Upper Timing Cover Bolts Tightening Sequence
Courtesy of OF JAGUAR CARS INC

Torque Specification: 12 Nm

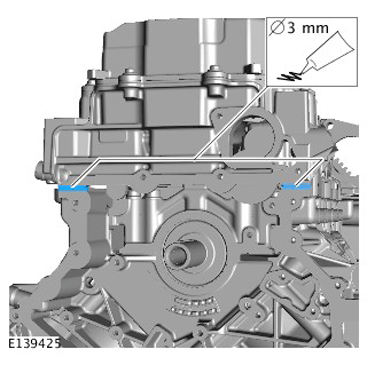

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

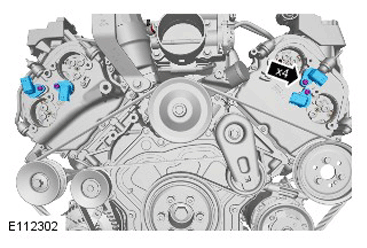

Install the bolts, but do not tighten fully at this stage. Special Tool(s): 303-1433
NOTE: Tighten the bolts in the indicated sequence.

Fig 3: Lower Timing Cover Bolts Tightening Sequence
Courtesy of OF JAGUAR CARS INC

Torque Specification:

M6 12 Nm

M8 20 Nm

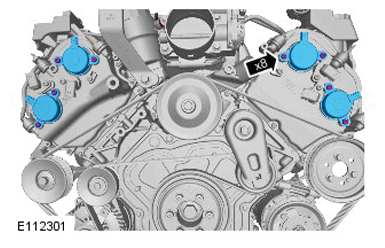

Remove the special tool.
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Refer to: Crankshaft Pulley
Refer to: Valve Cover RH
Refer to: Valve Cover LH
Refer to: Thermostat Housing - V8 S/C 5.0L Petrol
Refer to: Accessory Drive Belt Tensioner - V8 S/C 5.0L Petrol
Refer to: Accessory Drive Belt - V8 S/C 5.0L Petrol
Refer to: Battery Disconnect and Connect
