Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

  1. Refer to: Battery Disconnect and Connect

  2. Raise and support the vehicle.
  3. Refer to: Catalytic Converter RH
  4. G11299589

    Torque Specification: 12 Nm

  5. G11293775

    Torque Specification: 48 Nm

  6. CAUTION: Discard the bolt.
    G11512231

    Torque Specification: 35 Nm

  7. G11512234

    Torque Specification: 100 Nm

  10. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.

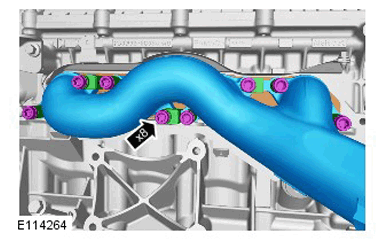

    G11285058
  11. NOTE: Do not disassemble further if the component is removed for access only.
G11069547
