Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

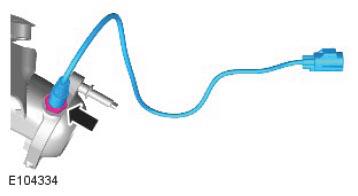

  1. G11069547

    Torque Specification: 45 Nm

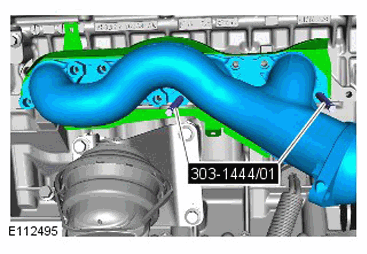

  2. NOTE: Install a new gasket.
    G11285061

    Install the special tool.

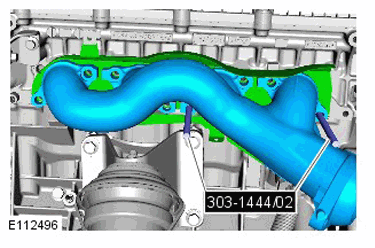

  3. NOTE: If a new cylinder head is installed use the special tools in the illustration.
    G11285062

    Install the special tool.

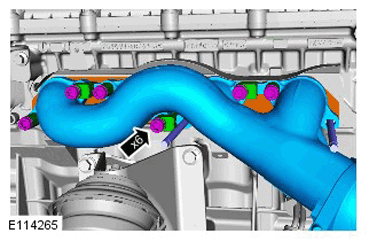

  4. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11285063

    Torque Specification: 10 Nm

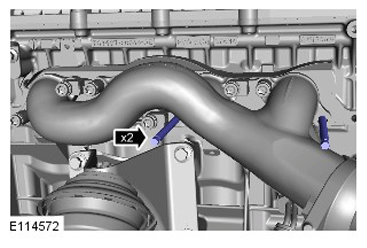

  5. G11285064

    Remove the special tool.

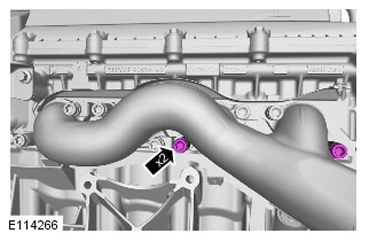

  6. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11285065

    Torque Specification: 10 Nm

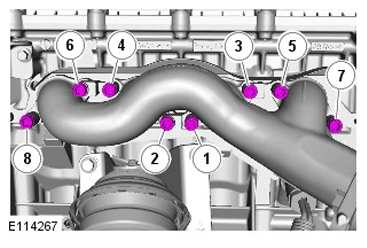

  7. Fig 1: Exhaust Manifold Bolts Tightening Sequence
    G11285066Courtesy of OF JAGUAR CARS INC

    Torque Specification: 18 Nm

  8. G11508024
  9. G11299589

    Torque Specification: 12 Nm

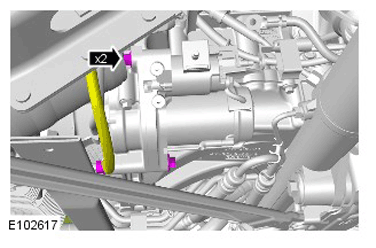

  10. G11293775

    Torque Specification: 48 Nm

  11. CAUTION: Discard the bolt.
    G11512231

    Torque Specification: 35 Nm

  12. G11512234

    Torque Specification: 100 Nm

  14. Refer to: Catalytic Converter RH

  15. Refer to: Battery Disconnect and Connect
