Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Right Camshaft

  4. Refer to: Exhaust Manifold
  5. G11507964
  6. CAUTION:
    • Discard the seal.
    • LH illustration shown, RH is similar.
    NOTE: Engine shown removed for clarity.
    G11284953
  7. G11284955
  8. G11284991
  9. NOTE: Clamp the hose to minimize coolant loss.
    G11507968

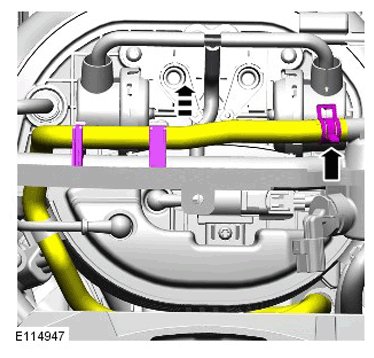

  10. NOTE: Clamp the hose to minimize coolant loss.
    G11284957

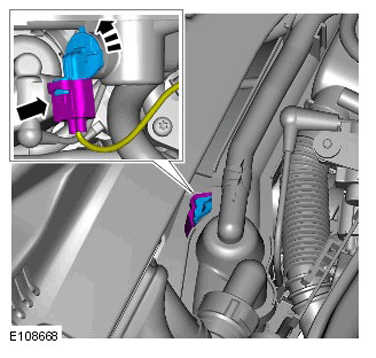

  11. G11284958
  12. CAUTION: Discard the seals.
    G11284960
  13. G11284996
  14. NOTE: Remove and discard the O-ring seal.
    G11284997
  15. NOTE: Discard the gasket.
    G11284998
  16. G11284999

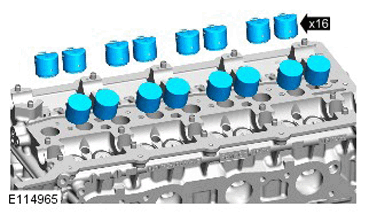

  17. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
    G11284963

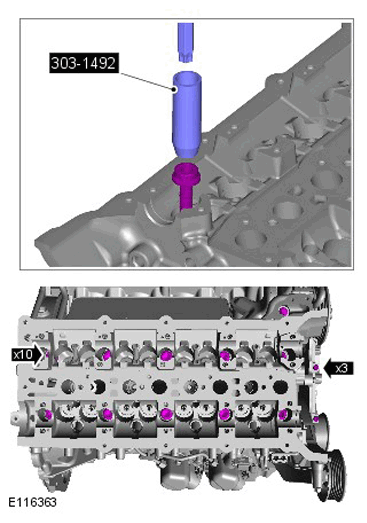

  18. CAUTION: Discard the bolts.
    G11285001

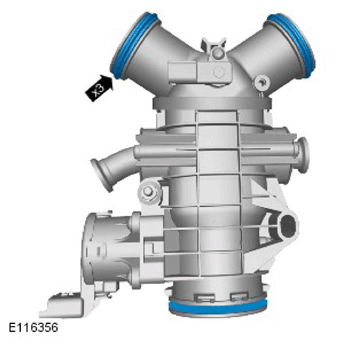

  19. NOTE: Discard the gasket.
G11327329
