Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer To: Battery Disconnect And Connect
  2. WARNING: Make Sure To Support The Vehicle With Axle Stands.

    Raise And Support The Vehicle.

  3. Refer To: Oil Pan Extension
  4. NOTE: Tsubaki Timing Drive Only.
    G11285217
  5. NOTE: Ina Timing Drive Only.
    G11285218
  6. G11285219
  7. CAUTION: Remove And Discard The O-Ring Seal.
    G11285220
  8. CAUTION: Remove And Discard The O-Ring Seals.

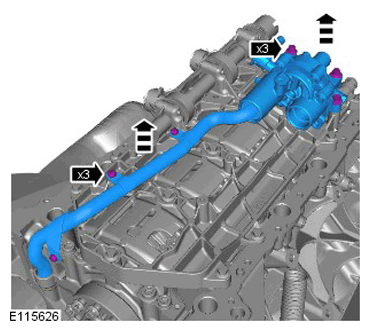

    G11285221
  9. CAUTION: Remove And Discard The O-Ring Seal.
G11285222
