Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Lubricate and install the new O-ring seals.

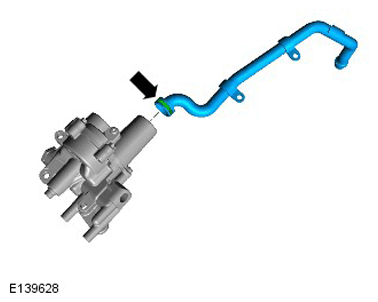

    G11285222
  2. NOTE: Lubricate and install the new O-ring seals.

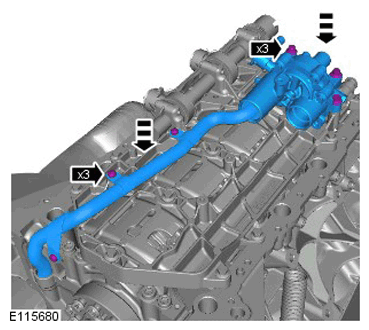

    G11285224

    Torque Specifications:

    M8 25 Nm

    M6 12 Nm

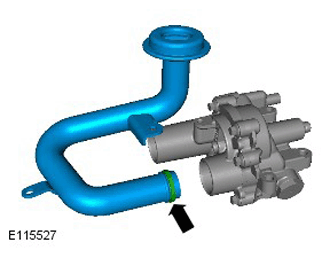

  3. NOTE: Lubricate and install the new O-ring seals.
    G11285225

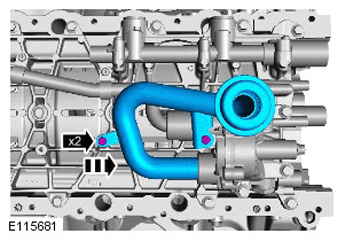

  4. G11285226

    Torque Specification: 12 Nm

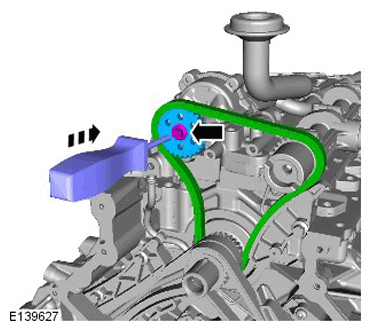

  5. G11285219

    Torque Specification: 21 Nm

  6. NOTE: Tsubaki timing drive only.

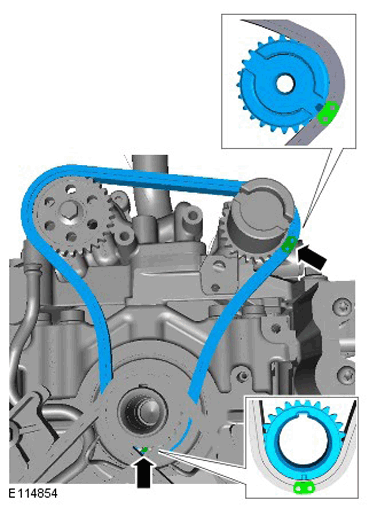

    G11285228

    Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

  7. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: Tsubaki timing drive only.

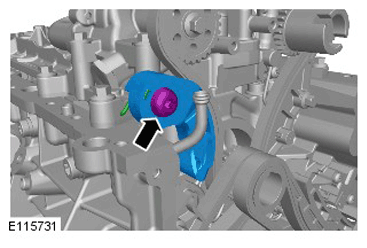

    G11285217

    Torque Specification: 21 Nm

  8. NOTE: INA timing drive only.

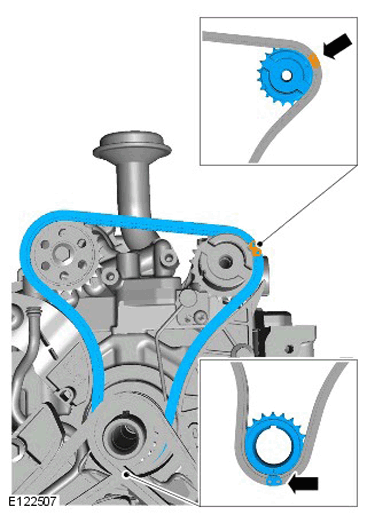

    G11285230

    Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

  9. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: INA timing drive only.
    G11285218

    Torque Specification: 21 Nm

  10. Refer to: Oil Pan Extension
  11. Refer to: Battery Disconnect and Connect
