Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

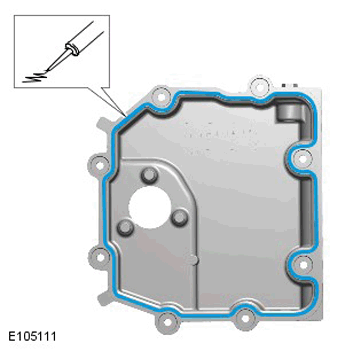

  1. G11285137

    Apply a continuous bead of RTV sealant (Loctite 5901) 3 mm diameter, around the flange as indicated.

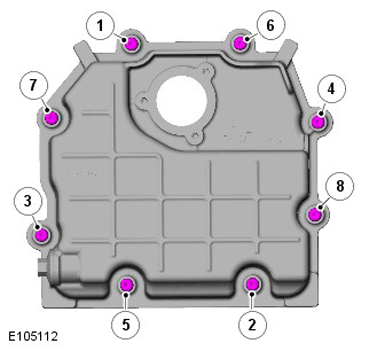

  2. Fig 1: Oil Pan Bolts Tightening Sequence
    G11285138Courtesy of OF JAGUAR CARS INC

    Torque Specification: 12 Nm

  3. Refer to: Engine Oil Level Sensor
