Special Tool(S): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: Battery Disconnect and Connect

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Crankshaft Pulley
  4. Refer to: Engine
  5. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    G11285085
  6. Fig 1: Generator Mounting Bolts Tightening Sequence
    GJ0012838Courtesy of OF JAGUAR CARS INC
  7. G11285144
  8. G11292984
  9. G11285147
  10. G11286105
  11. G11286107
  12. G11285356
  13. G11285355
  14. G11285150
  15. NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.
    G11286770
  16. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286716
  17. G11285152
  18. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285153
  19. G11284999
  20. G11508106
  21. G11285201
  22. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Discard the fuel pipes.
    G11285157
  23. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11288126

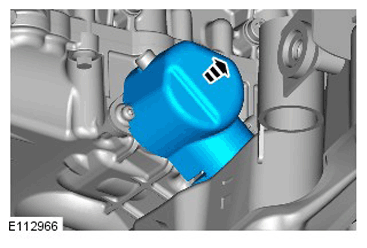

  24. G11293608
  25. CAUTION: Be prepared to collect escaping fluids.
    G11285187

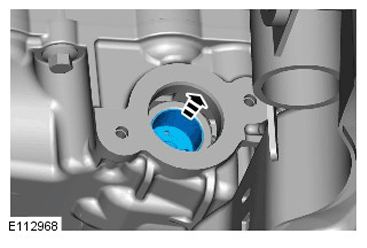

  26. CAUTION: Be prepared to collect escaping fluids.
    G11285160
  27. G11508113
  28. CAUTION: Be prepared to collect escaping fluids.
    G11285190

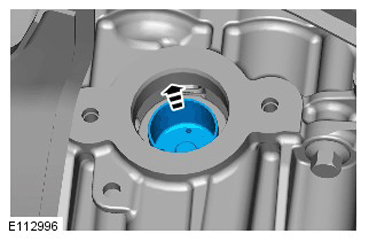

  29. CAUTION: Be prepared to collect escaping fluids.
    G11285161
  30. CAUTION: Be prepared to collect escaping fluids.
    G11285164

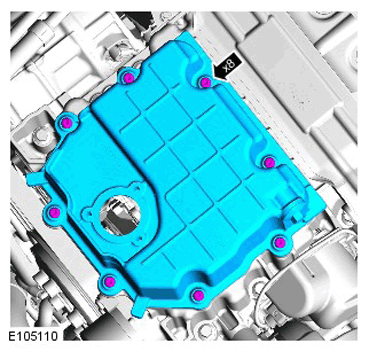

  31. G11285136

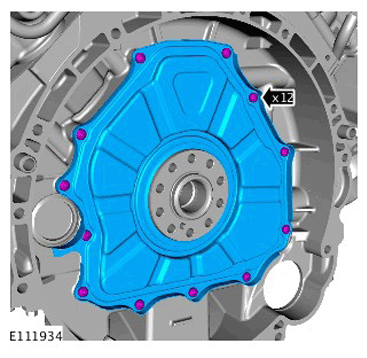

  32. G11285166
  33. NOTE: Clean the components general area prior to dismantling.
    G11284855

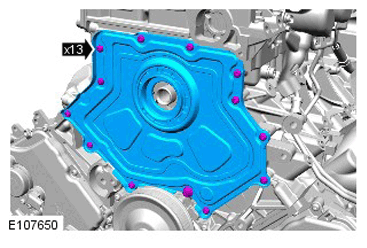

  34. NOTE: Discard the component.
    G11285168

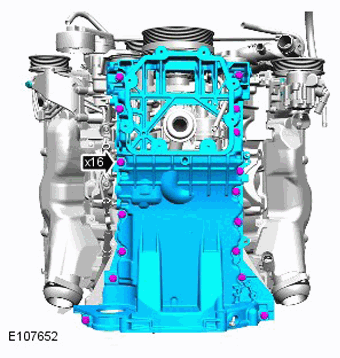

  35. G11285169

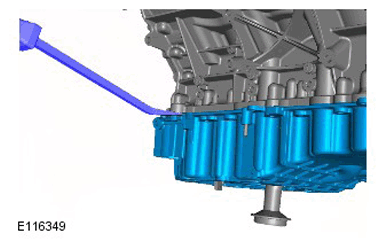

  36. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
    G11285170
  37. NOTE: Do not disassemble further if the component is removed for access only.
G11285171
