Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Supercharger

  4. Refer to: Cooling System Partial Draining and Vacuum Filling
  5. G11285125

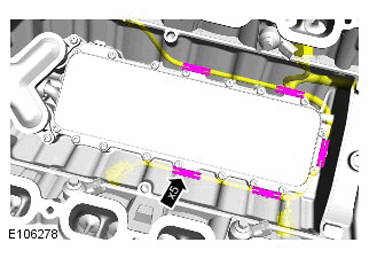

  6. G11285126
  7. CAUTION:
    • Be prepared to collect escaping oil.
    • Be prepared to collect escaping coolant.

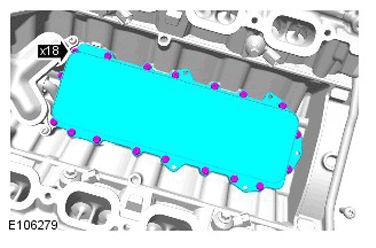

    G11285127

    Torque Specification: 13 Nm

  8. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Install a new gasket.

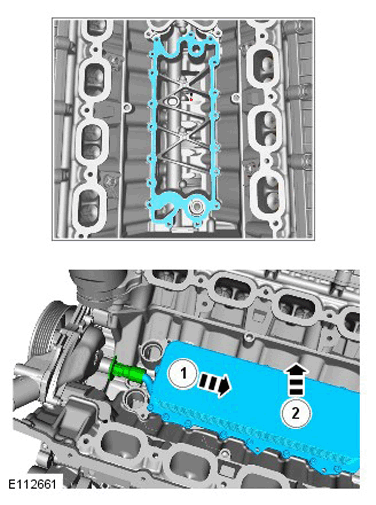

    G11285128
  9. CAUTION:
    • Make sure that these components are installed to the noted removal position.
    • Install new o-ring seals

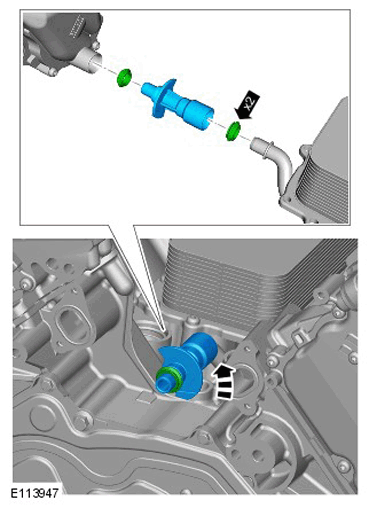

G11285129
