Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Raise and support the vehicle.
  3. Refer to: Supercharger
  4. Refer to: Left Fuel Rail
  5. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11508202

    Torque Specification: 10 Nm

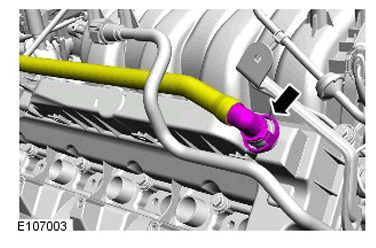

  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11285318

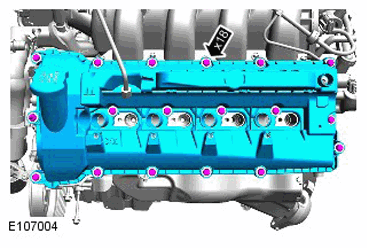

  7. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11285319
