Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: Battery Disconnect and Connect
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector - 5.0L

    All vehicles

  4. CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

    Support the engine with the lifting equipment.

    Left-hand drive vehicles

  5. G11512245
  6. NOTE: Note the fitted position.
    G11507999

    Torque Specification: 35 Nm

  7. G11508000

    Torque Specification: 100 Nm

    All vehicles

  8. G11512248

    Torque Specification: 63 Nm

  9. G11512249

    Torque Specification: 48 Nm

  10. NOTE: Do not disassemble further if the component is removed for access only.

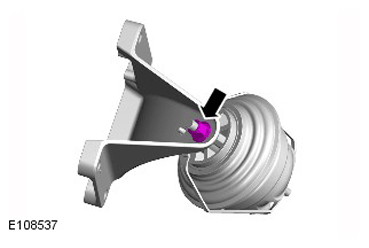

G11285031

Torque Specification: 48 Nm
