Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

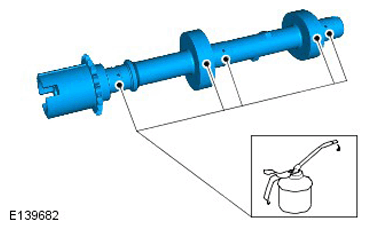

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11285338

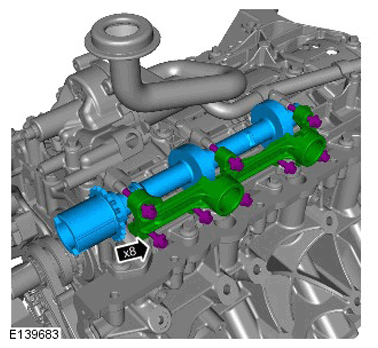

  2. CAUTION: Take extra care not to damage the mating faces.
    G11285337

    Torque Specification: 12 Nm

  3. G11285219

    Torque Specification: 21 Nm

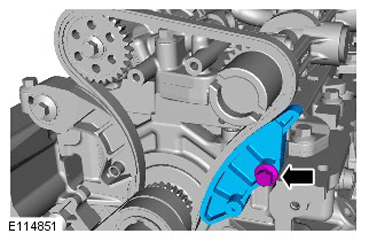

  4. G11285336

    Torque Specification: 12 Nm

  5. G11285230

    Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

  6. CAUTION: Make sure that the tensioner spring is correctly located.
    G11285218

    Torque Specification: 21 Nm

  7. Refer to: Oil Pan Extension
  8. Connect the battery ground cable.

    Refer to: Specifications
