Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Raise and support the vehicle.
  3. Refer to: Transmission
  4. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    • Install the bolts in the noted position.
    NOTE:
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    • Make sure that the crankshaft is not rotated.
    • Tighten the retaining bolts working diagonally.

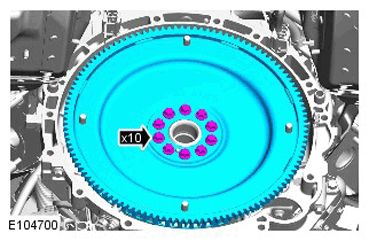

    G11285085

    Torque Specifications:

    Stage 1: 45 Nm

    Stage 2: 90°
